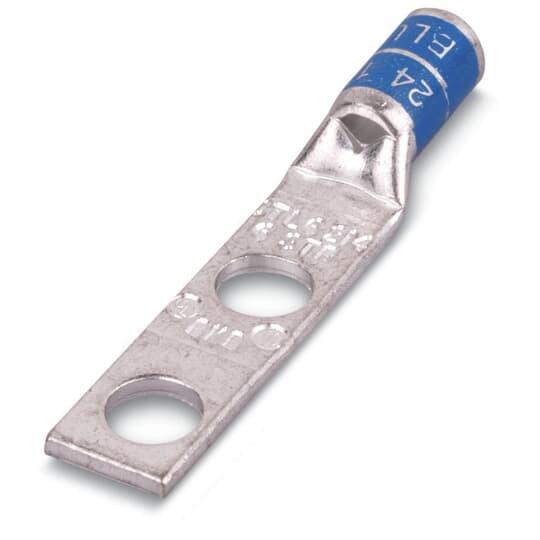

Image provided may only be a representation of
final product and may include optional equipment
CTL5002
Thomas & Betts CTL5002 Blackburn Compression Lug
Part Number # CTL5002
SKU # 2182755
Thomas & Betts CTL5002 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CTL5002 |
| SKU #: | 2182755 |
| Barrel Size: | 1-3/8 in L |
| Barrel Type: | Short, Short/Standard |
| Conductor Size: | 500, 500 kcmil |
| Conductor Type: | Copper/Stranded, Flexible/Stranded Copper |
| Overall Length: | 5, 5 in |
| Series: | CTL |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 1-17/32 in W x 7/32 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00783786410491 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts CTL5002 Blackburn Compression Lug
Brand: Thomas & Betts
Part Number: CTL5002
Color-Keyed Compression Lug, 2-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 500 kcmil Conductor, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1-17/32 in W x 7/32 in THK Tongue, 5 in Overall Length, Short/Standard Barrel, 1-3/8 in L Barrel, Specifications: 1-3/4 in Hole Spacing, Tin Plated, Copper, Brown
Additional Description: TB -CTL5002 CU TP 2HL LUG SHRT BRL 500 1/2B BRN
Catalog Description: Type CTL Copper Two-Hole Lug, Short Barrel, Max 35kV, Wire Size 500 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Color Code Brown
CTL5002 Application
Confined Areas, Industrial and Building ApplicationsCTL5002 Item Features
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
CTL5002 Standards
UL E9809 / UL E9809SKU #2182755Part Number #CTL5002UNSPSC39121405UPC00783786410491
