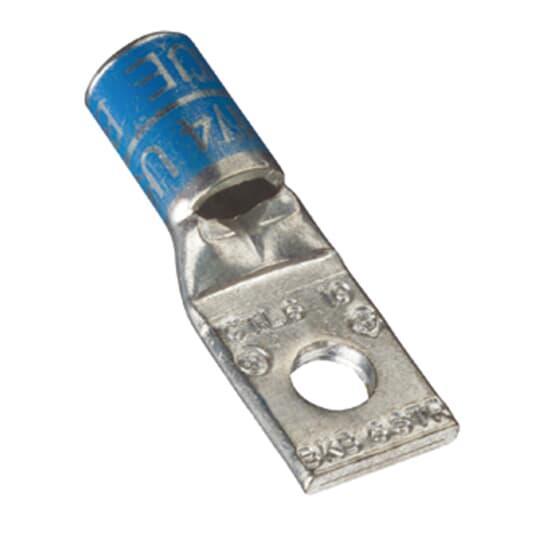

Thomas & Betts CTL6-14 Blackburn Compression Lug
Part Number # CTL6-14
SKU # 972882
$241.07 / 50Each
Thomas & Betts CTL6-14 Key Features
Brand: Thomas & Betts
Part Number # CTL6-14
SKU #972882
Barrel Size: 7/16 in L
Barrel Type: Short, Short/Standard
Conductor Size: 6, 6 AWG
Conductor Type: Copper/Stranded, Flexible/Stranded Copper
Overall Length: 1-7/32, 1-7/32 in
Series: CTL
Specifications: Tin Plated
Tongue Size: 17/16 in L x 7/16 in W x 1/16 in THK
Tongue Type: Straight
Type: 1-Hole
Voltage Rating: 35, 35 kV
Color: Blue
Country of origin: MX
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121405
UPC: 00783786131709
$241.07 / 50Each
- Color-Keyed Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 6 AWG Conductor, 35 kV, 1/4 in Stud, Straight Tongue, 17/16 in L x 7/16 in W x 1/16 in THK Tongue, 1-7/32 in Overall Length, Short/Standard Barrel, 7/16 in L Barrel, Specifications: Tin Plated, Copper, Blue
CTL6-14 Application
Confined Areas, Industrial and Building ApplicationsCTL6-14 Item Features
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
CTL6-14 Standards
CSA Certified|UL File No. E9809SKU #972882Part Number #CTL6-14UNSPSC39121405UPC00783786131709
