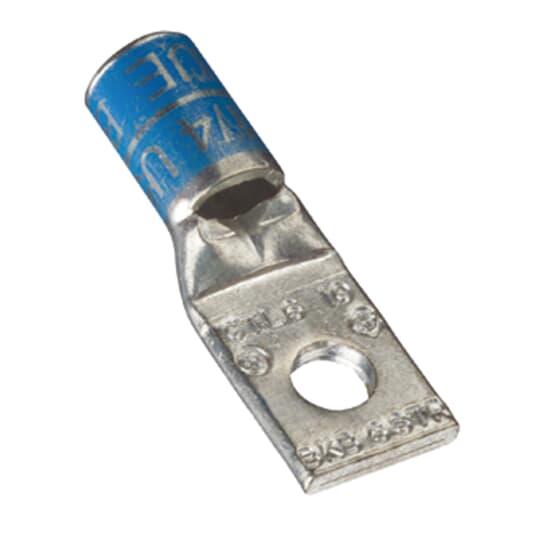

Thomas & Betts CTL6-38 Blackburn Compression Lug
Thomas & Betts CTL6-38 Blackburn Compression Lug
Part #:CTL6-38
SKU #: 2233767
Key Features
Part #:CTL6-38
SKU #: 2233767
Brand: Thomas & Betts
Barrel Size: 7/16 in L
Barrel Type: Short, Short/Standard
Conductor Size: 6, 6 AWG
Conductor Type: Copper/Stranded, Flexible/Stranded Copper
Overall Length: 1-13/32, 1-13/32 in
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
- For use with copper conductors: AWG stranded, flexible cable, welding cable and portable cord
Thomas & Betts CTL6-38 Blackburn Compression Lug
Color-Keyed Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 6 AWG Conductor, 35 kV, 3/8 in Stud, Straight Tongue, 21/32 in L x 19/32 in W x 1/16 in THK Tongue, 1-13/32 in Overall Length, Short/Standard Barrel, 7/16 in L Barrel, Specifications: Tin Plated, Copper, Blue
Additional Description: TB -CTL6-38 CU TP 1HL LUG SHRT BRL 6 3/8B BLU
Catalog Description: Copper One-Hole Lug, Short Barrel, Max 35kV, 6 Str. Wire, 3/8 Bolt Size, Tin Plated, Die Color Code Blue
