CTL6L-14

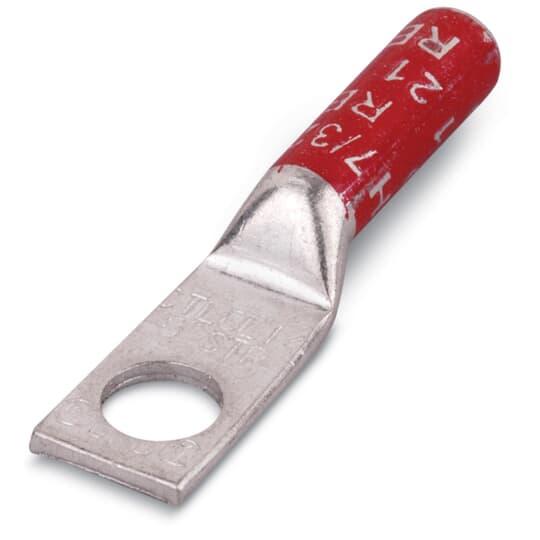

Thomas & Betts CTL6L-14 Blackburn Compression Lug
Part Number # CTL6L-14
SKU # 2270399
$300.13 / 50Each
Typical price:$402.15 / Each
Thomas & Betts CTL6L-14 Key Features
Brand: | Thomas & Betts |
---|---|
Part Number # : | CTL6L-14 |
SKU #: | 2270399 |
Barrel Size: | 25/32 in L |
Barrel Type: | Long |
Conductor Size: | 6, 6 AWG |
Conductor Type: | Copper/Stranded, Flexible/Stranded Copper |
Overall Length: | 1-5/8, 1-5/8 in |
Series: | CTL |
Specifications: | Tin Plated |
Tongue Size: | 5/8 in L x 13/32 in W x 1/16 in THK |
Tongue Type: | Straight |
Type: | 1-Hole |
Color: | Blue |
Country of origin: | MX |
Material: | Copper |
Manufacturer Name: | ABB |
UNSPSC: | 39121405 |
UPC: | 00783786410347 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$300.13 / 50Each
Typical price:$402.15 / Each
Quantity:
- Color-Keyed Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 6 AWG Conductor, 35 kV, 1/4 in Stud, Straight Tongue, 5/8 in L x 13/32 in W x 1/16 in THK Tongue, 1-5/8 in Overall Length, Long Barrel, 25/32 in L Barrel, Specifications: Tin Plated, Copper, Blue
CTL6L-14 Application
Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination ApplicationsCTL6L-14 Item Features
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Heavy duty design which permits additional crimp for added mechanical strength
CTL6L-14 Standards
CSA Certified|UL File No. E9809SKU #2270399Part Number #CTL6L-14UNSPSC39121405UPC00783786410347
