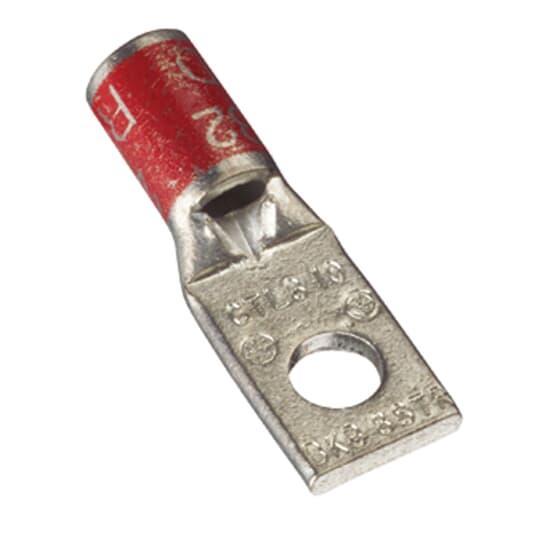

Image provided may only be a representation of
final product and may include optional equipment
CTL8-14
Thomas & Betts CTL8-14 Blackburn Compression Lug
Part Number # CTL8-14
SKU # 2137557
Thomas & Betts CTL8-14 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CTL8-14 |
| SKU #: | 2137557 |
| Barrel Size: | 13/32 in L |
| Barrel Type: | Short/Standard |
| Conductor Size: | 8 AWG |
| Conductor Type: | Flexible/Stranded Copper |
| Overall Length: | 1-3/16 in |
| Series: | CTL |
| Specifications: | Tin Plated |
| Tongue Size: | 19/32 in L x 7/16 in W x 1/16 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00783786131679 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts CTL8-14 Blackburn Compression Lug
Brand: Thomas & Betts
Part Number: CTL8-14
Color-Keyed Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 8 AWG Conductor, 35 kV, 1/4 in Stud, Straight Tongue, 19/32 in L x 7/16 in W x 1/16 in THK Tongue, 1-3/16 in Overall Length, Short/Standard Barrel, 13/32 in L Barrel, Specifications: Tin Plated, Copper, Red
Additional Description: TB -CTL8-14 CU TP 1HL LUG SHRT BRL 8 1/4B RED
Catalog Description: Copper One-Hole Lug, Short Barrel, Max 35kV, 8 Str. Wire, 1/4 Bolt Size, Tin Plated, Die Color Code Red
CTL8-14 Application
Confined Areas, Industrial and Building ApplicationsCTL8-14 Item Features
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
CTL8-14 Standards
CSA Certified|UL File No. E9809SKU #2137557Part Number #CTL8-14UNSPSC39121405UPC00783786131679
