Brand: Thomas & Betts
CU1000

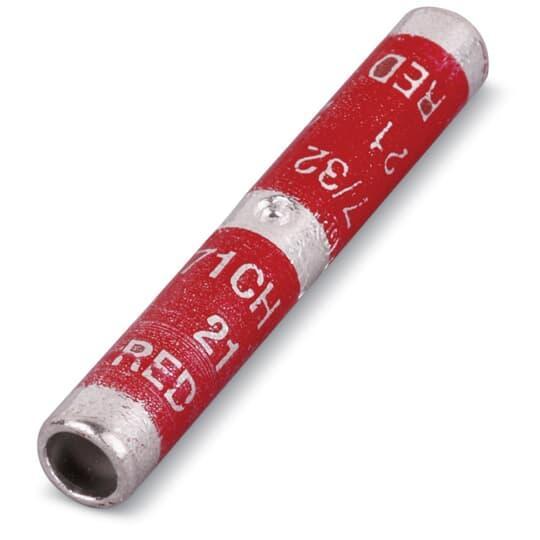

Thomas & Betts CU1000 Blackburn Compression Splice
Part Number # CU1000
SKU # 2236407
$478.38 / 3Each
Typical price:$641.04 / Each
Thomas & Betts CU1000 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CU1000 |
| SKU #: | 2236407 |
| Barrel Type: | Long |
| Conductor Size: | 1000, 1000 kcmil |
| Conductor Type: | Copper, Flexible/Stranded Copper |
| Connector Type: | Compression |
| Finish: | TiN Coated, Tin Plated |
| Series: | CU Series |
| Specifications: | 5/8 in Stud |
| Type: | Heavy Duty Long Barrel, Type CU Heavy Duty |
| Country of origin: | MX |
| Length: | 5-5/8, 5-5/8 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121449 |
| UPC: | 00783786132270 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$478.38 / 3Each
Typical price:$641.04 / Each
Quantity:
- Color-Keyed Compression Splice, Heavy Duty Long Barrel, Series: CU Series, Flexible/Stranded Copper Conductor, 1000 kcmil Conductor, 5-5/8 in Length, Compression Connector, 35 kV, Specifications: 5/8 in Stud, Copper, Tin Plated
CU1000 Application
Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination ApplicationsCU1000 Item Features
- Made of high conductivity seamless copper tubing, tin plated for corrosion-resistance
- Specifically chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Heavy duty design which permits additional crimp for added mechanical strength
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
CU1000 Standards
CSA Certified|Federal Specification 111.60-17|UL File No. E9809SKU #2236407Part Number #CU1000UNSPSC39121449UPC00783786132270
