Brand: Thomas & Betts

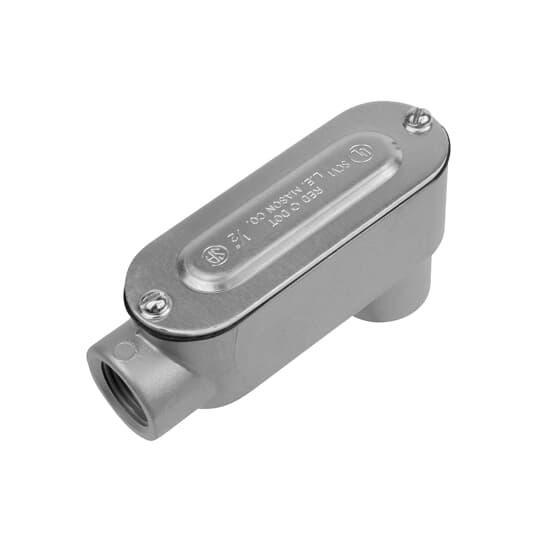

Thomas & Betts DALB-5-CG Steel City D-Pak Conduit Body
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts DALB-5-CG Steel City D-Pak Conduit Body
Brand: Thomas & Betts
Thomas & Betts DALB-5-CG Steel City D-Pak Conduit Body
Part #:DALB-5-CG
SKU #: 2181720
$66.64/EA
Key Features
Part #:DALB-5-CG
SKU #: 2181720
Brand: Thomas & Betts
Capacity: 32, 32 cu-in
Dimensions: 7-1/4 in L x 7-7/8 in W x 2-1/2 in H
Hub Size: 1-1/2, 1-1/2 in
Series: A Series
Type: Type LB
$66.64/EA
- Copper-free aluminum provides increased corrosion-resistance
- Precision cast and machined surfaces permit safer wire pulling
- Clean cover edges provide good gasket sealing
- Precision NPT threaded and set screw hubs allow trouble-free field installation
- Retained deep slotted stainless steel cover screws for faster installation
- Clear UL, CSA and cubic content markings speed approval by inspectors
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
- Aluminum conduit bodies can be used with steel rigid conduit NEC 346-1 and steel EMT, NEC 348-1
- Combination packaging of conduit body, cover and gasket reduces handling and inventory costs
- Back access opening
- Provide access for pulling, splicing and maintenance
- See through wrapper provides instant identification and protects product on job site
- Red Dot quality in durable, die cast aluminum construction made to endure the elements
Specifications
Brand: Thomas & Betts
Capacity: 32, 32 cu-in
Dimensions: 7-1/4 in L x 7-7/8 in W x 2-1/2 in H
Hub Size: 1-1/2, 1-1/2 in
Series: A Series
Type: Type LB
Connection type: NPT/Set Screw
Country of origin: IN
Material: Die Cast Aluminum
Manufacturer Name: ABB
UNSPSC: 39131708
UPC: 00042269810747
Thomas & Betts DALB-5-CG Steel City D-Pak Conduit Body
Red Dot D-Pak Conduit Body, Type LB, Series: A Series, 1-1/2 in Hub, 2 Hubs, 32 cu-in, NPT/Set Screw, Die Cast Aluminum, 7-1/4 in L x 7-7/8 in W x 2-1/2 in H
Additional Description: TB -DALB-5-CG SHRNK-WRP 1 1/2 INCHLB BODY CV GSK
Catalog Description: 1-1/2 inch Threaded D-Pak Die Cast Aluminum Conduit Body-Back Opening, Cover Gasket. For use with Rigid/IMC Conduit.
Item FeaturesFor EMT/rigid/IMC conduit
Item Features
Item FeaturesCSA Certified|Federal Specification W-C-586|NEC Article No. 370-28|UL File No. E286881
