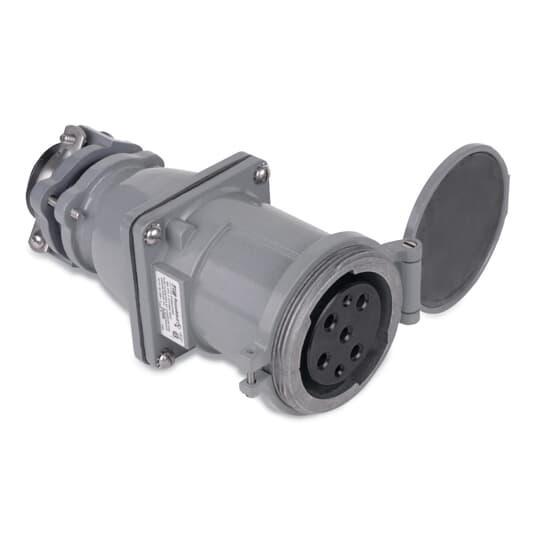

Thomas & Betts DF1414FP000 Russellstoll Max-Gard Female Connector
Part Number # DF1414FP000
SKU # 2277801
$0.00 / Each
Typical price:$2674.56 / Each
Thomas & Betts DF1414FP000 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | DF1414FP000 |
| SKU #: | 2277801 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 11-1/8 in H x 5-3/8 in W |
| Frequency Rating: | 60, 60 Hz |
| NEMA Rating: | NEMA 4X/6 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 130, -40 to 130 deg C |
| Terminal Type: | Pressure-Type Solderless Screw |
| Type: | 3-Phase Explosionproof Standard Waterproof |
| Country of origin: | MX |
| Material: | Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121406 |
| UPC: | 00708917197102 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.00 / Each
Typical price:$2674.56 / Each
Quantity:
- Russellstoll Max-Gard Female Connector, 3-Phase Explosionproof Standard Waterproof, 600 VAC, 100 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X/6, Industrial Grade, -40 to 130 deg C, Pressure-Type Solderless Screw Terminal, Cast Aluminum, 11-1/8 in H x 5-3/8 in W Dimensions
DF1414FP000 Application
Hazardous Locations, Convention Centers and ArenasDF1414FP000 Item Features
- Without adapter and box
- All receptacles and connectors must have a rotating disk on the face of the interior, which provides live contact isolation and environmental separation
- All devices upon disconnect under load shall have provision so the arc is contained and extinguished within the insulation cavity, making it impossible to withdraw a live plug
- All devices shall be factory polarized for amperage, voltage, frequency and phase, thus providing a single voltage rating, single interface system
- The grounding of the device shall be accomplished through a separate center ground (earth) make first and break last pole on all devices for complete system grounding
- All devices shall accommodate up to four power pins plus a separate center ground pin and they shall be integral with the connector bodies (five pins total)
- Flap cover option must provide weathertight capability by utilizing a spring actuated self-closing flap
- Waterproof construction provides environmental separation at the front of each device (they dont have to be connected together just to be called "watertight")
DF1414FP000 Standards
UL Listed|CSA C22.2-182.1 File No. LR14096|OSHA Compliant|MIL-STD-105/1344|ASTM D570/D2565|NEMA PR4-1983|NEC Certified|IEC 309-1SKU #2277801Part Number #DF1414FP000UNSPSC39121406UPC00708917197102
