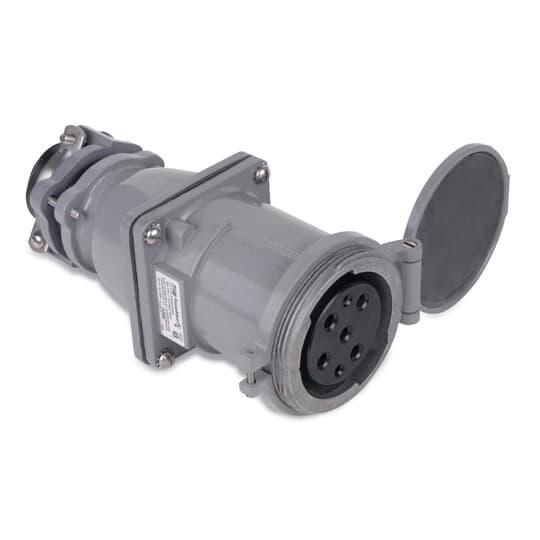

Thomas & Betts DF2504FP000 Russellstoll MaxGard Pin and Sleeve Connector
Image Disclaimers Message
Thomas & Betts DF2504FP000 Russellstoll MaxGard Pin and Sleeve Connector
Thomas & Betts DF2504FP000 Russellstoll MaxGard Pin and Sleeve Connector
Part #:DF2504FP000
SKU #: 31788
$3568.24/EA
Key Features
Part #:DF2504FP000
SKU #: 31788
Brand: Thomas & Betts
Amperage Rating: 200, 200 A
Dimensions: 15 in L x 9-1/2 in W
Frequency Rating: 60, 60 Hz
Number of Poles: 4
Number of Wires: 5
$3568.24/EA
- Waterproof construction provides environmental separation at the front of each device (they dont have to be connected together just to be called watertight)
- Two optional pilot/control pins for contractors, load monitor circuits, shunt trip or any other communication functions you need
- Center ground contacts make FIRST, break LAST
- All receptacles and connectors have a gated rotating disk on the face of the interior, engaged on insertion
- Convention centers and areas
- For use in applications where outdoor, severe or high abuse environments exist
- Load breaking female connector
- Copper free, cast aluminum, epoxy powder coated housing
- Standard neoprene O-ring interior components
- MaxGard interconnection systems
Specifications
Brand: Thomas & Betts
Amperage Rating: 200, 200 A
Dimensions: 15 in L x 9-1/2 in W
Frequency Rating: 60, 60 Hz
Number of Poles: 4
Number of Wires: 5
Temperature Rating (Degrees F): -40 to 266, -40 to 266 deg F
Type: Female
Voltage Rating: 277/480, 277/480 VAC
Country of origin: MX
Material: Cast Aluminum
Manufacturer Name: ABB
UNSPSC: 39121406
UPC: 00708917177043
Item FeaturesFor electrical hook-up of mobile medical imaging (MMI) trailers
Item Features
