Part Number # DF2504FR000
SKU # 408787
Image Disclaimers Message
Brand: Thomas & Betts
DF2504FR000

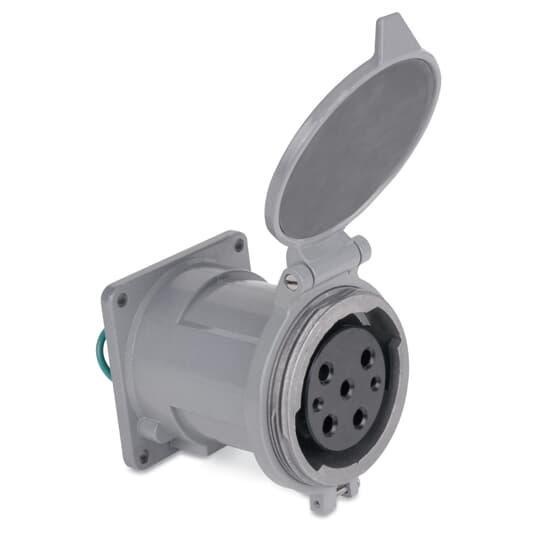

Thomas & Betts DF2504FR000 Russellstoll MaxGard Flap Cap Receptacle
Part Number # DF2504FR000
SKU # 408787
$3321.27 / Each
Typical price:$4450.50 / Each
Thomas & Betts DF2504FR000 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | DF2504FR000 |
| SKU #: | 408787 |
| Amperage Rating: | 200, 200 A |
| Frequency Rating: | 60, 60 Hz |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 130, -40 to 130 deg C |
| Type: | Explosionproof Female |
| Country of origin: | MX |
| Material: | Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121406 |
| UPC: | 00708917203391 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3321.27 / Each
Typical price:$4450.50 / Each
Quantity:
- Russellstoll MaxGard Flap Cap Receptacle, Explosionproof Female, 30/480 VAC, 200 A, 60 Hz, 4 Pole, 5 Wires, -40 to 130 deg C, Cast Aluminum
DF2504FR000 Application
For electrical hook-up of mobile medical imaging (MMI) trailersDF2504FR000 Item Features
- Waterproof construction provides environmental separation at the front of each device
- Two optional pilot/control pins for contractors, load monitor circuits, shunt trip or any other communication functions you need
- Center ground contacts, make first, break last
- All receptacles and connectors have a gated rotating disk on the face of the interior, engaged on insertion
DF2504FR000 Standards
CSA Certified|UL ListedSKU #408787Part Number #DF2504FR000UNSPSC39121406UPC00708917203391
