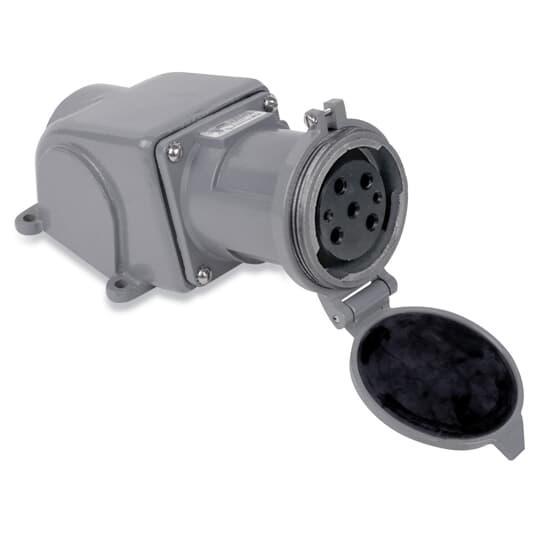

Thomas & Betts DF3407FR0E0 Russellstoll Max-Gard Female Sleeve Receptacle
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts DF3407FR0E0 Russellstoll Max-Gard Female Sleeve Receptacle
Brand: Thomas & Betts
Thomas & Betts DF3407FR0E0 Russellstoll Max-Gard Female Sleeve Receptacle
Part #:DF3407FR0E0
SKU #: 2278035
$1445.91/EA
Key Features
Part #:DF3407FR0E0
SKU #: 2278035
Brand: Thomas & Betts
Amperage Rating: 30, 30 A
Dimensions: 9-7/8 in H x 6-3/8 in W
Frequency Rating: 60, 60 Hz
NEMA Rating: NEMA 4X/6
Number of Poles: 3
$1445.91/EA
- With angle enclosure
- Without adapter
- Waterproof construction provides environmental separation at the front of each device (they dont have to be connected together just to be called "watertight")
- Gated deadfront - all receptacles must have a rotating disk on the face of the interior, which provides live contact isolation and environmental separation
- All devices upon disconnect under load shall have provision so the arc is contained and extinguished within the insulation cavity, making it impossible to withdraw a live plug
- All devices shall be factory polarized for amperage, voltage, frequency and phase, thus providing a single voltage rating, single interface system
- The grounding of the device shall be accomplished through a separate center ground (earth) make first and break last pole on all devices for complete system grounding
- All devices shall accommodate up to four power pins plus a separate center ground pin and they shall be integral with the connector bodies (five pins total)
- Flap cover option must provide weathertight capability by utilizing a spring actuated self-closing flap
Specifications
Brand: Thomas & Betts
Amperage Rating: 30, 30 A
Dimensions: 9-7/8 in H x 6-3/8 in W
Frequency Rating: 60, 60 Hz
NEMA Rating: NEMA 4X/6
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 130, -40 to 130 deg C
Terminal Type: Pressure-Type Solderless Screw
Type: 3-Phase Standard Waterproof
Voltage Rating: 250, 250 VAC
Country of origin: US
Material: Cast Aluminum
Manufacturer Name: ABB
UNSPSC: 39121406
UPC: 00708917303381
Item FeaturesFor use in "People Movers" which require air conditioning and heater unit power when docked at end of line locations for maintenance and overhaul, indoor/outdoor applications
Item Features
Item FeaturesUL Listed|CSA C22.2-182.1 File No. LR14096|OSHA Compliant|MIL-STD-105/1344|ASTM D570/D2565|NEMA PR4-1983|NEC Certified|IEC 309-1
