Part Number # DF3504FP000
SKU # 2397561
Image Disclaimers Message
DF3504FP000

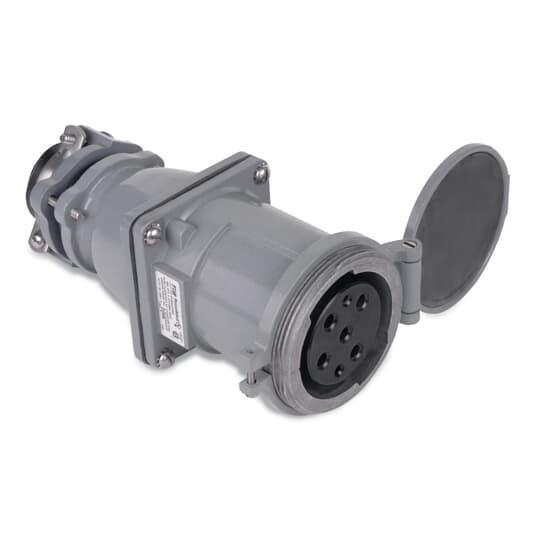

Thomas & Betts DF3504FP000 Russellstoll Max-Gard Female Connector
Part Number # DF3504FP000
SKU # 2397561
$1457.00 / Each
Typical price:$1952.38 / Each
Thomas & Betts DF3504FP000 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | DF3504FP000 |
| SKU #: | 2397561 |
| Amperage Rating: | 30 A |
| Dimensions: | 8-3/4 in H x 5-1/8 in W |
| Frequency Rating: | 60 Hz |
| NEMA Rating: | NEMA 4X/6 |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 130 deg C |
| Terminal Type: | Pressure-Type Solderless Screw |
| Type: | 3-Phase Explosionproof Standard Waterproof |
| Country of origin: | US |
| Material: | Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121406 |
| UPC: | 00708917160663 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1457.00 / Each
Typical price:$1952.38 / Each
Quantity:
- Russellstoll Max-Gard Female Connector, 3-Phase Explosionproof Standard Waterproof, 277/480 V AC, 30 A, 60 Hz Frequency, 4 Pole, 5 Wires, NEMA 4X/6, Industrial Grade, -40 to 130 deg C, Pressure-Type Solderless Screw Terminal, Cast Aluminum, 8-3/4 in H x 5-1/8 in W Dimensions
DF3504FP000 Application
For hazardous locations, use in "People Movers" which require air conditioning and heater unit power when docked at end of line locations for maintenance and overhaulDF3504FP000 Item Features
- Without adapter and box
- Waterproof construction provides environmental separation at the front of each device (they dont have to be connected together just to be called "watertight")
- All receptacles and connectors must have a rotating disk on the face of the interior, which provides live contact isolation and environmental separation
- All devices upon disconnect under load shall have provision so the arc is contained and extinguished within the insulation cavity, making it impossible to withdraw a live plug
- All devices shall be factory polarized for amperage, voltage, frequency and phase, thus providing a single voltage rating, single interface system
- The grounding of the device shall be accomplished through a separate center ground (earth) make first and break last pole on all devices for complete system grounding
- All devices shall accommodate up to four power pins plus a separate center ground pin and they shall be integral with the connector bodies (five pins total)
- Flap cover option must provide weathertight capability by utilizing a spring actuated self-closing flap
DF3504FP000 Standards
UL Listed|CSA C22.2-182.1 File No. LR14096|OSHA Compliant|MIL-STD-105/1344|ASTM D570/D2565|NEMA PR4-1983|NEC Certified|IEC 309-1SKU #2397561Part Number #DF3504FP000UNSPSC39121406UPC00708917160663
