Part Number # DF3504FRA00
SKU # 2397726
Image Disclaimers Message
Brand: Thomas & Betts
DF3504FRA00

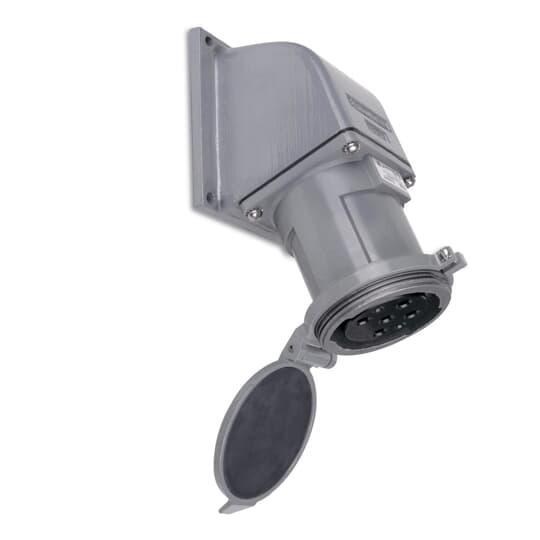

Thomas & Betts DF3504FRA00 Russellstoll Max-Gard Female Sleeve Receptacle
Part Number # DF3504FRA00
SKU # 2397726
$2086.46 / Each
Typical price:$2795.86 / Each
Thomas & Betts DF3504FRA00 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | DF3504FRA00 |
| SKU #: | 2397726 |
| Amperage Rating: | 30 A |
| Dimensions: | 9-5/8 in H x 6-1/8 in W |
| Frequency Rating: | 60 Hz |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 130 deg C |
| Terminal Type: | Pressure-Type Solderless Screw |
| Type: | 3-Phase Standard |
| Country of origin: | US |
| Material: | Copper-Free Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121406 |
| UPC: | 00708917334804 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2086.46 / Each
Typical price:$2795.86 / Each
Quantity:
- Russellstoll Max-Gard Female Sleeve Receptacle, 3-Phase Standard, 277/480Y VAC, 30 A, 60 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, -40 to 130 deg C, Pressure-Type Solderless Screw Terminal, Copper-Free Cast Aluminum, 9-5/8 in H x 6-1/8 in W Dimensions
DF3504FRA00 Application
Indoor/Outdoor ApplicationsDF3504FRA00 Item Features
- With angle adapter
- Without box
- Gated deadfront - all receptacles must have a rotating disk on the face of the interior, which provides live contact isolation and environmental separation
- All devices upon disconnect under load shall have provision so the arc is contained and extinguished within the insulation cavity, making it impossible to withdraw a live plug
- All devices shall be factory polarized for amperage, voltage, frequency and phase, thus providing a single voltage rating, single interface system
- The grounding of the device shall be accomplished through a separate center ground (earth) make first and break last pole on all devices for complete system grounding
- All devices shall accommodate up to four power pins plus a separate center ground pin and they shall be integral with the connector bodies (five pins total)
- Flap cover option must provide weathertight capability by utilizing a spring actuated self-closing flap
DF3504FRA00 Standards
UL Listed|CSA C22.2-182.1 File No. LR14096|OSHA Compliant|MIL-STD-105/1344|ASTM D570/D2565|NEMA PR4-1983|NEC Certified|IEC 309-1SKU #2397726Part Number #DF3504FRA00UNSPSC39121406UPC00708917334804
