Part Number # DF4404FP000
SKU # 2458477

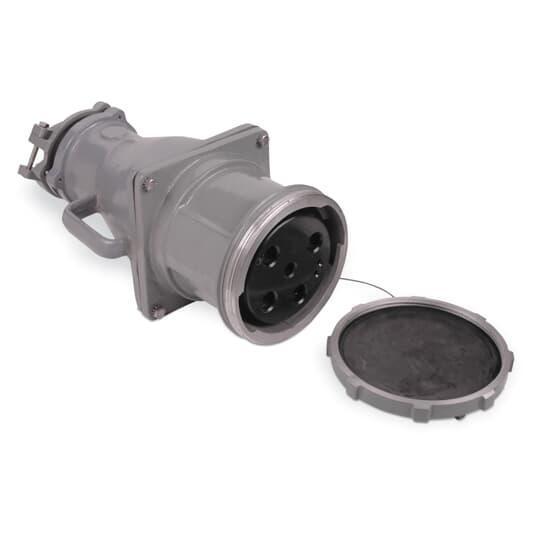

Image provided may only be a representation of
final product and may include optional equipment
DF4404FP000
Thomas & Betts DF4404FP000
Part Number # DF4404FP000
SKU # 2458477
Thomas & Betts DF4404FP000 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | DF4404FP000 |
| SKU #: | 2458477 |
| Amperage Rating: | 400 A |
| Dimensions: | 19-1/8 in H x 10-3/4 in W |
| Frequency Rating: | 60 Hz |
| NEMA Rating: | NEMA 4X/6 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 130 deg C |
| Terminal Type: | Pressure-Type Solderless Screw |
| Type: | 3-Phase Explosionproof Standard Waterproof |
| Country of origin: | MX |
| Material: | Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121406 |
| UPC: | 00708917139553 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts DF4404FP000
Brand: Thomas & Betts
Part Number: DF4404FP000
Russellstoll® Max-Gard® Female Connector, 3-Phase Explosionproof Standard Waterproof, 480 VAC, 400 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X/6, Industrial Grade, -40 to 130 deg C, Pressure-Type Solderless Screw Terminal, Cast Aluminum, 19-1/8 in H x 10-3/4 in W Dimensions
Additional Description: TB -DF4404FP000 (N) 400A,CON,3P4W,MG,404,3P480 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: MaxGard Female Flap Cap Connector, 400 Amp, 3 Pole 4 Wire, 30 480V, 60Hz
DF4404FP000 Application
For hazardous locations, shore power to marine vessels sightseeing boatsDF4404FP000 Item Features
- Without adapter and box
- Waterproof construction provides environmental separation at the front of each device (they dont have to be connected together just to be called "watertight")
- All receptacles and connectors must have a rotating disk on the face of the interior, which provides live contact isolation and environmental separation
- All devices upon disconnect under load shall have provision so the arc is contained and extinguished within the insulation cavity, making it impossible to withdraw a live plug
- All devices shall be factory polarized for amperage, voltage, frequency and phase, thus providing a single voltage rating, single interface system
- The grounding of the device shall be accomplished through a separate center ground (earth) make first and break last pole on all devices for complete system grounding
- All devices shall accommodate up to four power pins plus a separate center ground pin and they shall be integral with the connector bodies (five pins total)
- Flap cover option must provide weathertight capability by utilizing a spring actuated self-closing flap
DF4404FP000 Standards
UL Listed|CSA C22.2-182.1 File No. LR14096|OSHA Compliant|MIL-STD-105/1344|ASTM D570/D2565|NEMA PR4-1983|NEC CertifiedSKU #2458477Part Number #DF4404FP000UNSPSC39121406UPC00708917139553
