Brand: Thomas & Betts
DIH3-1-LM-WH

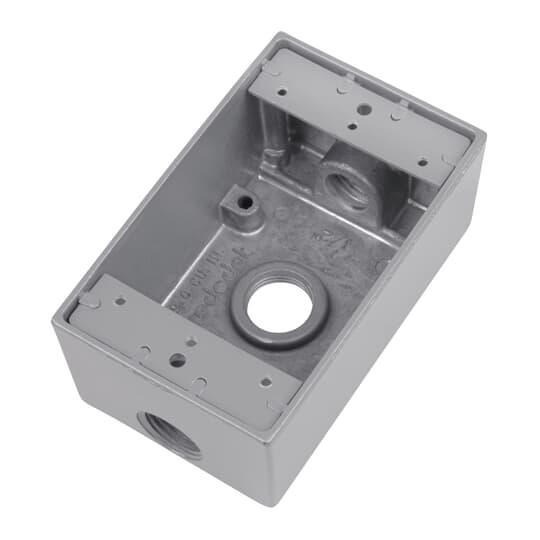

Thomas & Betts DIH3-1-LM-WH Red Dot Weatherproof Box
Part Number # DIH3-1-LM-WH
SKU # 2166295
$13.68 / Each
Thomas & Betts DIH3-1-LM-WH Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | DIH3-1-LM-WH |
| SKU #: | 2166295 |
| Capacity: | 19, 19 cu-in |
| Dimensions: | 4-9/16 in L x 2-13/16 in W x 2 in D |
| Finish: | Powder Coated |
| Hub Size: | 1/2, 1/2 in |
| Number of Gangs: | 1 |
| Number of Outlets: | 3 |
| Type: | Universal |
| Country of origin: | IN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121305 |
| UPC: | 00042269810228 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13.68 / Each
Quantity:
Thomas & Betts DIH3-1-LM-WH Red Dot Weatherproof Box
Brand: Thomas & Betts
Part Number: DIH3-1-LM-WH
Red Dot Weatherproof Box, Universal, 3 Outlets, 1 Gangs, 1/2 in Hub, 19 cu-in Capacity, Die Cast Aluminum, Powder Coated, White, 4-9/16 in L x 2-13/16 in W x 2 in D Dimensions
Additional Description: TB -DIH3-1-LM-WH (N) 1-GANG UNIV WP-BX 19CU 1/2HUB NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Single Gang Universal Weatherproof Box, 19.0 Cubic Inches, Hub Size 1/2 Inch, White, Aluminum, 3 Outlets, One on Top, Bottom, and Back, with Mounting Lugs
DIH3-1-LM-WH Application
For Dry-Tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locationsDIH3-1-LM-WH Item Features
- Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion-resistance
- Die cast construction and industrial design combine to produce a rugged protective enclosure for devices
- Clean cover edges provide good gasket sealing
- Precision cast and machined surfaces permit safer wire pulling
- Clear UL and cubic content markings speed approval by inspectors
- Convenient mounting lugs for a variety of mounting methods
- Securely fastened mounting plates reduce costly call backs
- Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Accessible wiring chamber provides a convenient location to maintain or change a system pull conductors and make splices
- Junction box for branch conduits
DIH3-1-LM-WH Standards
UL Listed|Federal Specification UL W-C-586|CSA CertifiedSKU #2166295Part Number #DIH3-1-LM-WHUNSPSC39121305UPC00042269810228
