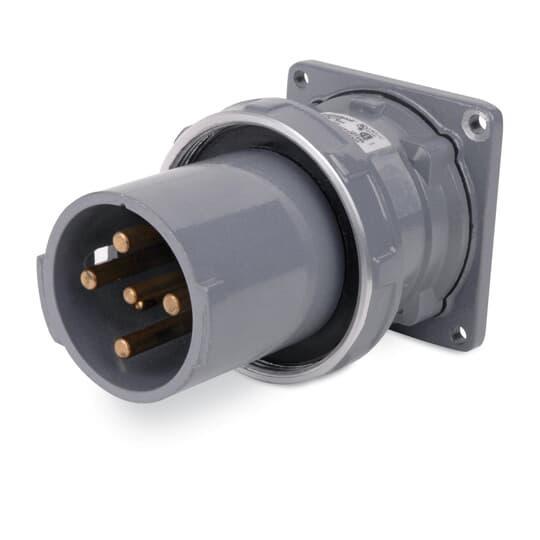

Thomas & Betts DS1516MR000 Russellstoll Max-Gard Male Inlet
Part Number # DS1516MR000
SKU # 2274366
$1628.64 / Each
Typical price:$2182.38 / Each
Thomas & Betts DS1516MR000 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | DS1516MR000 |
| SKU #: | 2274366 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 5-1/2 in H |
| Frequency Rating: | 60, 60 Hz |
| NEMA Rating: | NEMA 4X/6 |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 130, -40 to 130 deg C |
| Terminal Type: | Pressure-Type Solderless Screw |
| Type: | 3-Phase Standard Waterproof |
| Country of origin: | US |
| Material: | Copper-Free Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121402 |
| UPC: | 00708917181682 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1628.64 / Each
Typical price:$2182.38 / Each
Quantity:
- Russellstoll Max-Gard Male Inlet, 3-Phase Standard Waterproof, 120/208Y VAC, 100 A, 60 Hz Frequency, 4 Pole, 5 Wires, NEMA 4X/6, Industrial Grade, -40 to 130 deg C, Pressure-Type Solderless Screw Terminal, Copper-Free Cast Aluminum, 5-1/2 in H Dimensions
DS1516MR000 Application
Convention Centers and Arenas ApplicationsDS1516MR000 Item Features
- Without adapter and junction box
- Waterproof construction provides environmental separation at the front of each device (they dont have to be connected together just to be called "watertight")
- All receptacles and connectors must have a rotating disk on the face of the interior, which provides live contact isolation and environmental separation
- All devices upon disconnect under load shall have provision so the arc is contained and extinguished within the insulation cavity, making it impossible to withdraw a live plug
- Watertight capability shall be obtained by using a gasketed screw cap
- All devices shall be factory polarized for amperage, voltage, frequency and phase, thus providing a single voltage rating, single interface system
- The grounding of the device shall be accomplished through a separate center ground (earth) make first and break last pole on all devices for complete system grounding
- All devices shall accommodate up to four power pins plus a separate center ground pin and they shall be integral with the connector bodies
DS1516MR000 Standards
UL 1010/231/1682/1686 File No. E2630/E57324/E68085/E123752|CSA C22.2 182.1 File No. LR14096|MIL-STD-105|ASTM D570/D2565|OSHA Compliant|IEC 309-1SKU #2274366Part Number #DS1516MR000UNSPSC39121402UPC00708917181682
