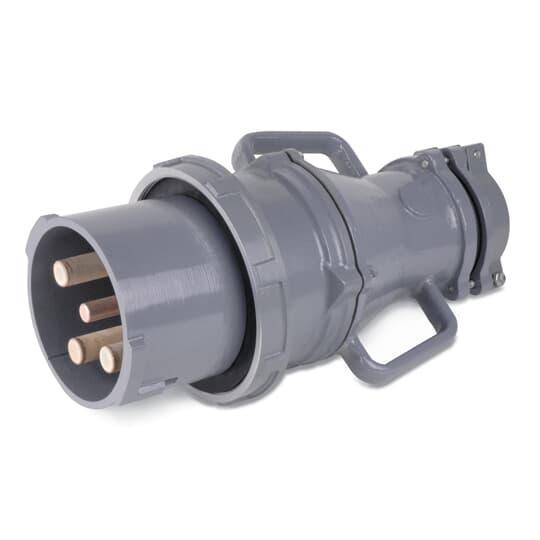

Thomas & Betts DS4404MP000 Russellstoll MaxGard Male Plug
Image Disclaimers Message
Thomas & Betts DS4404MP000 Russellstoll MaxGard Male Plug
Thomas & Betts DS4404MP000 Russellstoll MaxGard Male Plug
Part #:DS4404MP000
SKU #: 2217694
$7267.75/EA
Key Features
Part #:DS4404MP000
SKU #: 2217694
Brand: Thomas & Betts
Amperage Rating: 400, 400 A
Frequency Rating: 60 Hz
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 130, -40 to 130 deg C
$7267.75/EA
- Waterproof construction provides environmental separation at the front of each device
- Two optional pilot/control pins for contractors, load monitor circuits, shunt trip or any other communication functions you need
- Center ground contacts make FIRST, break LAST
- Standard delayed action pull and turn withdrawal offers all plugs an XP rating (30 to 100 A)
- For use in applications where outdoor, severe or high abuse environments exist
- Load breaking male plug
- Copper free, cast aluminum, epoxy powder coated housing
- Standard neoprene O-ring interior components
- Pin and sleeves are made from CDA 360 and marine-grade CDA 485 brass (200 and 400 A lines are silver-plated as well)
- For Heavy Industrial & Marine system
- 3-phase
- Interconnection Plug
Specifications
Brand: Thomas & Betts
Amperage Rating: 400, 400 A
Frequency Rating: 60 Hz
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 130, -40 to 130 deg C
Voltage Rating: 480, 480 VAC
Country of origin: MX
Material: Cast Aluminum
Manufacturer Name: ABB
UNSPSC: 39121402
UPC: 00708917159452
Item FeaturesFor shore power to marine vessels sightseeing boats
