Part Number # EYD31-TB
SKU # 2353326
Image Disclaimers Message
EYD31-TB

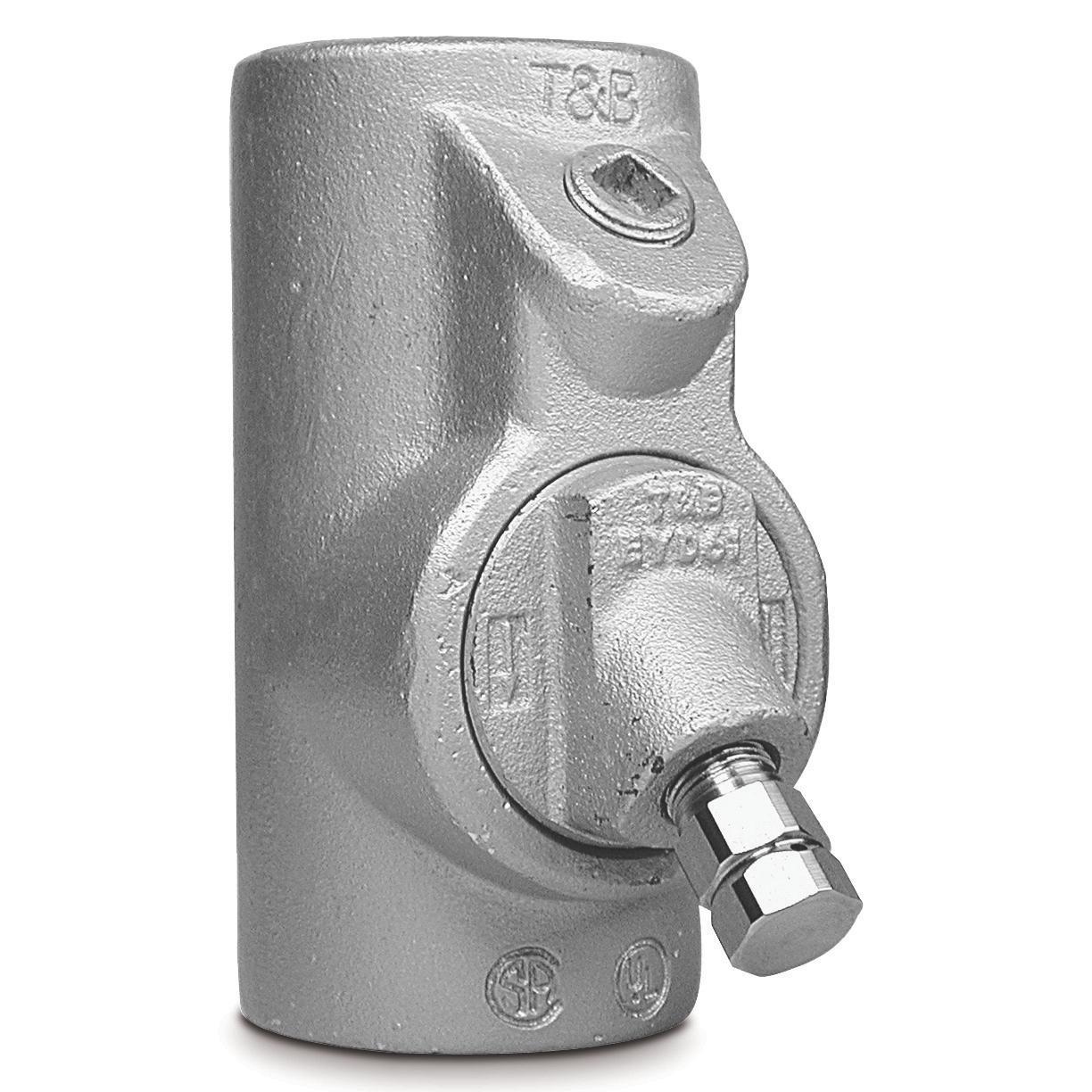

Thomas & Betts EYD31-TB Conduit Drain Sealing Fitting
Part Number # EYD31-TB
SKU # 2353326
Thomas & Betts EYD31-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | EYD31-TB |
| SKU #: | 2353326 |
| Dimensions: | 4.85 in L x 2.19 in W |
| Finish: | Aluminum Acrylic Painted/Electro Galvanized |
| Series: | EYD |
| Size: | 1, 1 in |
| Suitable For Use With: | Conduits |
| Type: | Dust-Ignitionproof Explosionproof Vertical, Dust/Ignitionproof Explosionproof Vertical |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210740515 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts EYD31-TB Conduit Drain Sealing Fitting
Brand: Thomas & Betts
Part Number: EYD31-TB
T&B Drain and Sealing Fitting, Dust/Ignitionproof Explosionproof Vertical, Series: EYD, 1 in, For Use With: Conduits, Iron, Gray, Aluminum Acrylic Painted/Electro Galvanized, 4.85 in L x 2.19 in W
Additional Description: TB -EYD31-TB (N) 1 INCH EYD DRAIN SEAL, IRON,VERT,XP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1 Inch EYD Drain Seal, Body and Inspection or Drain Cover Gray Iron and/or Ductile Iron, Closure for Drain Aluminum, or Ductile Iron, Small Closure Plug Gray Iron and/or Steel, Drain Stainless Steel, Removable Nipples Steel
EYD31-TB Application
For use to restrict the passage of gases, vapors or flames from one portion of the electrical installation to another and for wet locations and hazardous locationsEYD31-TB Item Features
- EYD drain sealing fittings include drain to provide continuous, automatic drainage of condensation
- Large openings with threaded closures to provide easy access to conduit hubs for making dams
- Integral bushings to protect conductor insulation from damage
- Tapered tapped hubs to ensure ground continuity
- 2.19 in turning radius
- Gray iron and/or ductile iron body and inspection or drain cover, aluminum or ductile iron closure for drain, gray iron and/or steel small closure plug, stainless steel drain and steel removable nipples
EYD31-TB Standards
Class I, Division 1, 2 Group A, B, C, D|Class II, Division 1, Group E, F, G|Class III, Division 1, 2|CSA Certified|UL 886/E193396SKU #2353326Part Number #EYD31-TBUNSPSC39131708UPC00786210740515
