Thomas & Betts F2036 Sta-Kon Wire Ferrule
Part Number # F2036
SKU # 39285
Thomas & Betts F2036 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | F2036 |
| SKU #: | 39285 |
| Specifications: | 0.091 in ID x 0.472 in L x 0.006 in THK Pin, 0.165 in Dia Base |
| Length: | 0.748 in |
| UNSPSC: | 39121432 |
| UPC: | 00786210335162 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts F2036 Sta-Kon Wire Ferrule
Brand: Thomas & Betts
Part Number: F2036
Sta-Kon Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 14 AWG Conductor, 0.748 in Length, Standard Barrel, 0.165 in Dia Barrel, 300 V AC, Specifications: 0.091 in ID x 0.472 in L x 0.006 in THK Pin, 0.165 in Dia Base, 105 deg C, Copper, Tin Coated, Blue
Additional Description: TB -F2036 INS PP FERRULE 14, 2.5 MM2, LG .74 .748 IN, BLUE
Catalog Description: Polypropylene-Insulated Ferrule, Total Length .748 Inches/19mm, Pin Length .472 Inches/12mm, Pin Diameter .091 Inches/2.3mm, Base Diameter .165 Inches/4.2mm, Wire Range 14 AWG/2.50mm2, Color Blue, Copper, Tin Plated
F2036 Item Features
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- Made of high conductivity copper
- Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
- Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
- Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
- Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
- Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
- T1, T3 and ERG4 recommended tools
F2036 Standards
DIN 46228 Part 4|UL File No. E489056SKU #39285Part Number #F2036UNSPSC39121432UPC00786210335162

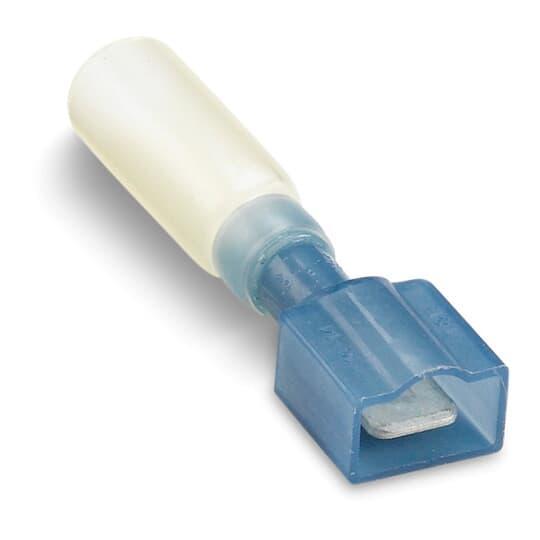

Image provided may only be a representation of final product and may include optional equipment
