F4020

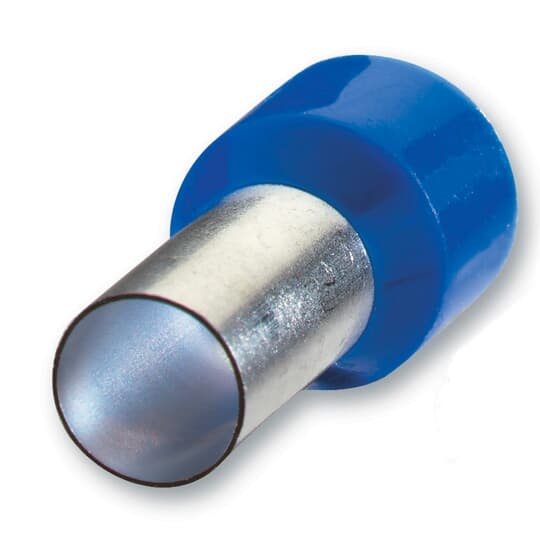

Thomas & Betts F4020 Sta-Kon Wire Ferrule
Part Number # F4020
SKU # 2224910
Thomas & Betts F4020 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | F4020 |
| SKU #: | 2224910 |
| Barrel Size: | 0.165 in Dia |
| Conductor Size: | 14, 14 AWG |
| Conductor Type: | Stranded Copper |
| Finish: | TiN Coated |
| Series: | F Series |
| Specifications: | 0.091 in ID x 0.315 in L x 0.006 in THK Pin, 0.165 in Dia Base |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Type: | Insulated |
| Color: | Blue |
| Country of origin: | DE |
| Length: | 0.571, 0.571 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210336749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts F4020 Sta-Kon Wire Ferrule
Brand: Thomas & Betts
Part Number: F4020
Sta-Kon Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 14 AWG Conductor, 0.571 in Length, 0.165 in Dia Barrel, 300 VAC, Specifications: 0.091 in ID x 0.315 in L x 0.006 in THK Pin, 0.165 in Dia Base, 105 deg C, Copper, Tin Coated, Blue
Additional Description: TB -F4020 INS PP OLD DIN FERRULE 14AWG 2.5MM2 MM2, LG
Catalog Description: Polypropylene-Insulated Old DIN Ferrule, Total Length .571 Inches/14.5mm, Pin Length .315 Inches/8mm, Pin Diameter .091 Inches/2.3mm, Base Diameter .165 Inches/4.2mm, Wire Range #14 AWG/2.50mm2, Color Blue, Copper, Tin Plated
F4020 Item Features
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- T1, T3 and ERG4 recommended tools
F4020 Standards
DIN 46228|Part 4|UL File No. E489056SKU #2224910Part Number #F4020UNSPSC39121432UPC00786210336749
