Brand: Thomas & Betts

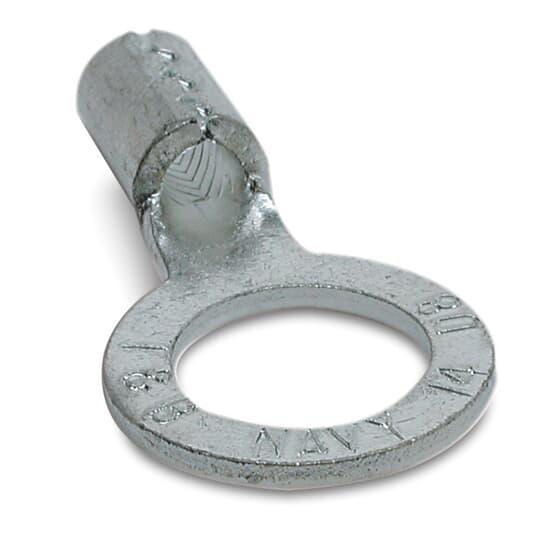

Thomas & Betts F73 Sta-Kon Ring Terminal
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts F73 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Thomas & Betts F73 Sta-Kon Ring Terminal
Part #:F73
SKU #: 39298
$1.48/EA
Key Features
Part #:F73
SKU #: 39298
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 4, 4 AWG
Finish: TiN Coated
Series: F Series
Specifications: 0.49 in Clearance
$1.48/EA
1800 In Stock
Ships in 1 Business Day
- Non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
- 200 pieces/pack
Specifications
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 4, 4 AWG
Finish: TiN Coated
Series: F Series
Specifications: 0.49 in Clearance
Temperature Rating (Degrees F): 150, 150 deg C
Tongue Size: 0.6 in W x 0.07 in THK
Tongue Type: Large Ring
Type: Non-Insulated
Voltage Rating: 600, 600 VAC
Color: Metallic
Country of origin: US
Length: 1.35, 1.35 in
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121432
UPC: 00786210812229
Thomas & Betts F73 Sta-Kon Ring Terminal
Sta-Kon Ring Terminal, Non-Insulated, Series: F Series, 4 AWG Conductor, 3/8 in Stud, 1.35 in Length, Brazed Seam/Serrated Barrel, Large Ring Tongue, 0.6 in W x 0.07 in THK Tongue, 600 VAC, 0.49 in Clearance, 150 deg C, Copper, Tin Coated, Metallic
Additional Description: TB -F73 NON-INS BS RING TERM 4 3/8
Catalog Description: Non-Insulated Large Brazed Seam Ring Terminal, Length 1.35 Inches, Width .60 Inches, Bolt Hole 3/8 Inch, Wire Range #4 AWG, Copper, Tin Plated, 200 Pack
Item FeaturesFor WT115A, TBM6, TBM6S and WT3185 tools
Item Features
Item FeaturesUL Listed|UL 94 V-0 Flammability Rated|CSA Certified|UL File No. E9809
