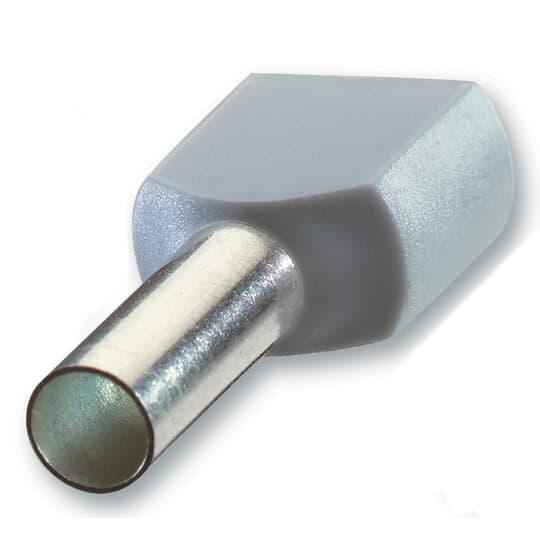

Thomas & Betts F8005 Sta-Kon Wire Ferrule
Part Number # F8005
SKU # 2241408
Thomas & Betts F8005 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | F8005 |
| SKU #: | 2241408 |
| Barrel Size: | 0.201 in Dia |
| Barrel Type: | Long |
| Conductor Size: | 17, 17 AWG |
| Conductor Type: | Stranded Copper |
| Finish: | TiN Coated |
| Series: | F Series |
| Specifications: | 0.081 in ID x 0.394 in L x 0.006 in THK Pin, 0.201 in Dia Base |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Type: | Insulated |
| Country of origin: | DE |
| Length: | 0.669, 0.669 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210335667 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts F8005 Sta-Kon Wire Ferrule
Brand: Thomas & Betts
Part Number: F8005
Sta-Kon Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 17 AWG Conductor, 0.669 in Length, Long Barrel, 0.201 in Dia Barrel, 300 VAC, Specifications: 0.081 in ID x 0.394 in L x 0.006 in THK Pin, 0.201 in Dia Base, 105 deg C, Copper, Tin Coated, Red
Additional Description: TB -F8005 INS PP TWIN FERRUL 2X17AWG 2X1.0MM2 INS NYL TWIN FERRULE 2X17, 2X1.00 MM2, L 2X1.00 M
Catalog Description: Polypropylene Insulated Twin Ferrule, Length .669 Inches/17mm, Pin Length .394 Inches/10mm, Pin Diameter .081 Inches/2.05mm, Base Diameter .201 Inches/5.1mm, Conductor Range 2x17 AWG/2x1.00mm2, Color Gray, Copper, Tin Plated
F8005 Item Features
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- T3 recommended tool
F8005 Standards
UL E489056 / UL E489056SKU #2241408Part Number #F8005UNSPSC39121432UPC00786210335667
