Part Number # FD12-TB
SKU # 2444122
Image provided may only be a representation of
final product and may include optional equipment
FD12-TB
Thomas & Betts FD12-TB
Part Number # FD12-TB
SKU # 2444122
$524.05 / 5Each
Typical price:$702.20 / Each
Thomas & Betts FD12-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | FD12-TB |
| SKU #: | 2444122 |
| Cable Entry Size: | Hub |
| Dimensions: | 4.28 in L x 4.63 in W x 2.81 in D |
| Finish: | Zinc Plated |
| Hub Size: | 1/2 in |
| Number of Gangs: | 2 |
| Type: | Type FD Dead End Deep Style |
| Country of origin: | US |
| Material: | Iron |
| Mounting type: | Lug |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121315 |
| UPC: | 00786210197265 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$524.05 / 5Each
Typical price:$702.20 / Each
Quantity:
Thomas & Betts FD12-TB
Brand: Thomas & Betts
Part Number: FD12-TB

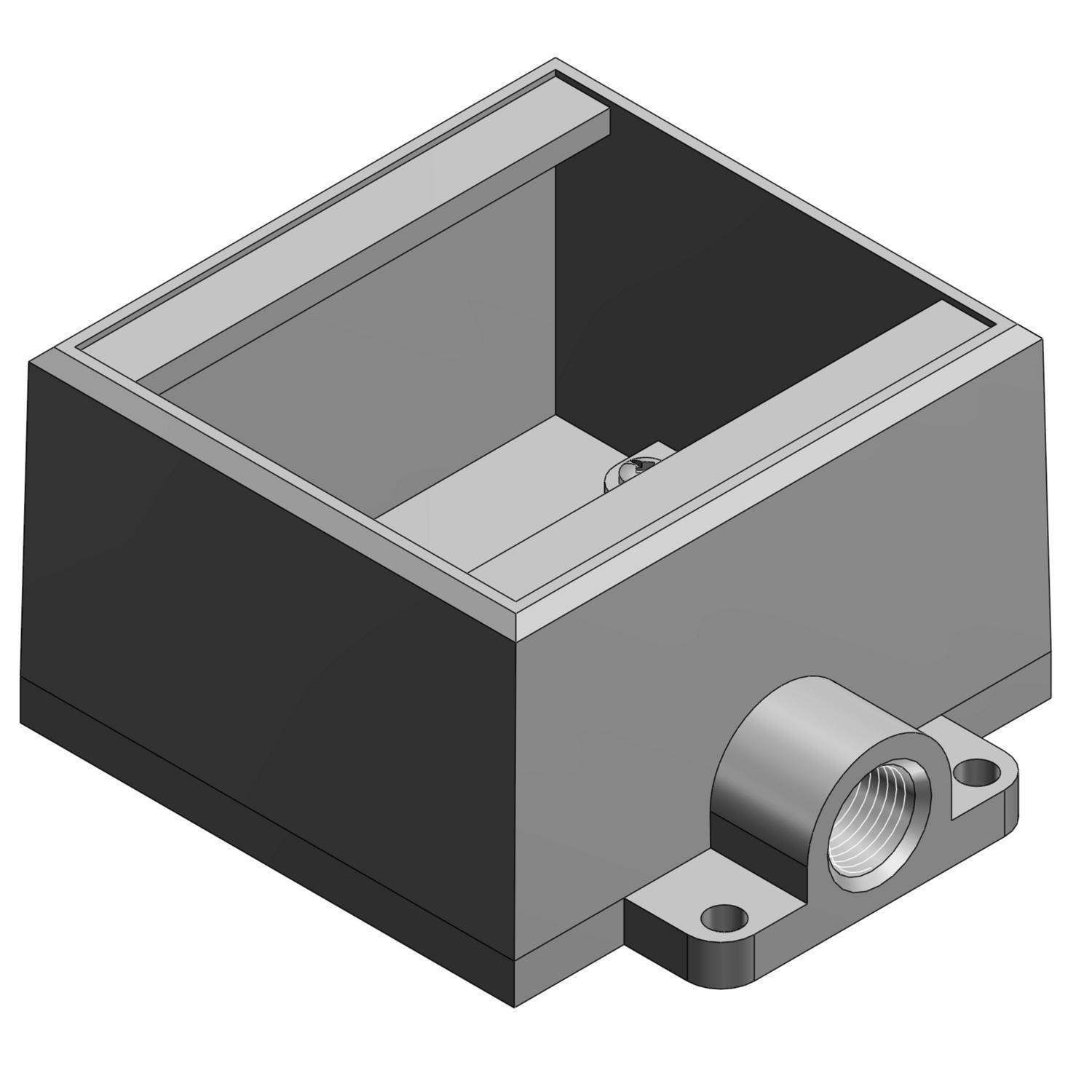

T&B® Cast Device Box, Type FD Dead End Deep Style, 2 Gangs, 1/2 in Hub, Hub Cable Entry, Lug Mounting, Iron, Zinc Plated, Gray, 4.28 in L x 4.63 in W x 2.81 in D Dimensions
Additional Description: TB -FD12-TB (N) 1/2 INCH, 2G-DEEP BOX, IRON, D-END NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1/2 Inch Deep 2 Gang Cast Device Box, Gray Iron Zinc Plated, Dead End, Suitable for Wet Locations When Used with Gasketed Covers
FD12-TB Application
For industrial grade device boxes, raintight covers protect wiring devices, switches, electronic components, terminal blocks in dry, damp and wet locationsFD12-TB Item Features
- All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
- Mounting lugs are standard on all FS and FD boxes
- Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
- Provide openings to make splices and taps in conductors
- Provide access to conductors for maintenance and future system changes
- Suitable for wet locations when used with gasketed covers
FD12-TB Standards
CSA Certified|UL File No. E2969SKU #2444122Part Number #FD12-TBUNSPSC39121315UPC00786210197265
