FDC2-TB

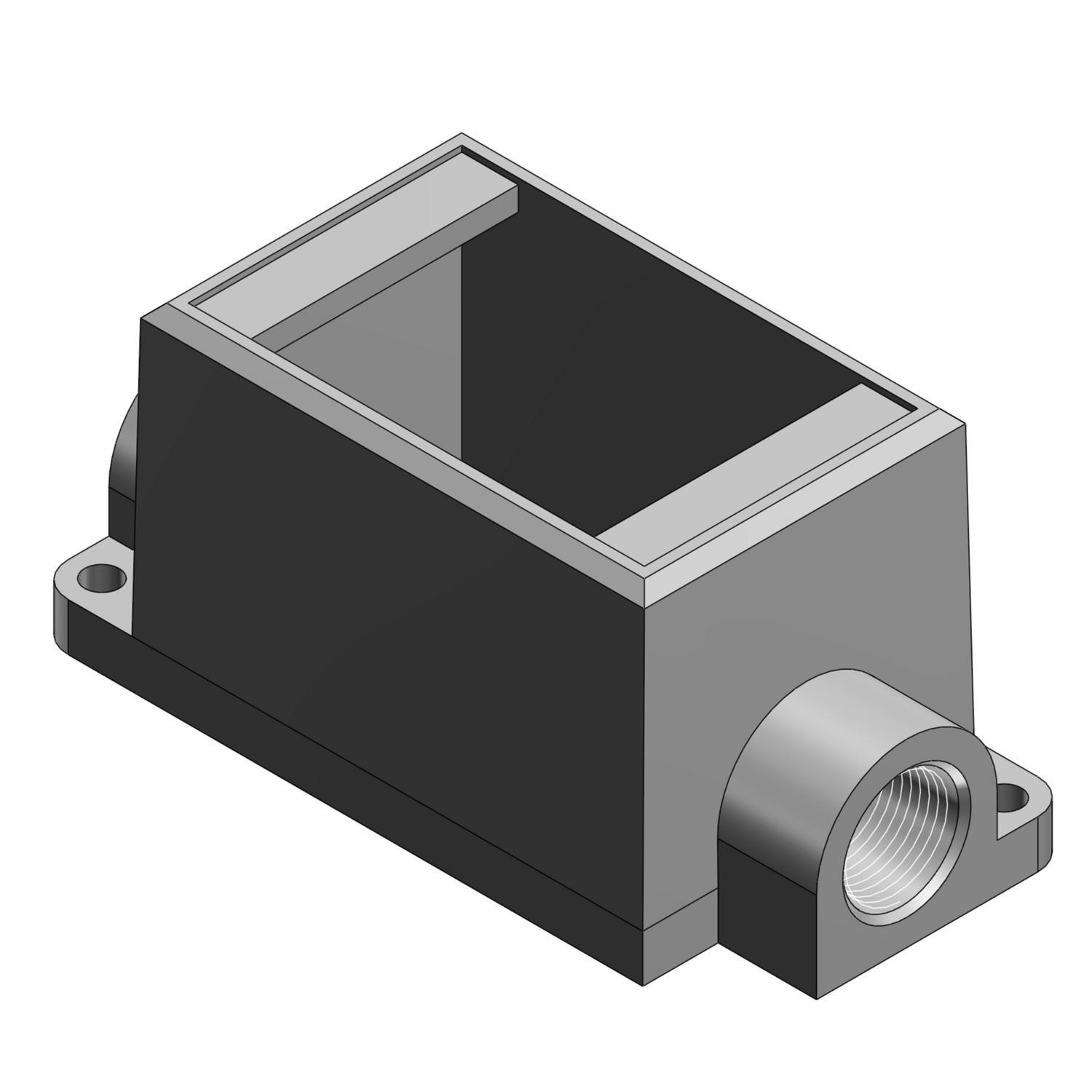

Thomas & Betts FDC2-TB Cast Device Box
Part Number # FDC2-TB
SKU # 2149777
$67.67 / Each
Typical price:$90.68 / Each
Thomas & Betts FDC2-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | FDC2-TB |
| SKU #: | 2149777 |
| Cable Entry Size: | Hub |
| Dimensions: | 2-3/4 in W x 2-13/16 in D x 4-9/32 in H, 4-9/32 in H x 2-3/4 in W x 2-13/16 in D |
| Finish: | Zinc Plated |
| Hub Size: | 3/4, 3/4 in |
| Hub Style: | NPT |
| Number of Gangs: | 1 |
| Number of Knockouts: | 1 |
| Number of Outlets: | 2 |
| Type: | Type FDC Deep Style Feed-Through |
| Color: | Gray |
| Country of origin: | US |
| Material: | Iron |
| Mounting type: | Lug |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121315 |
| UPC: | 00786210197104 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$67.67 / Each
Typical price:$90.68 / Each
Quantity:
Thomas & Betts FDC2-TB Cast Device Box
Brand: Thomas & Betts
Part Number: FDC2-TB
T&B Cast Device Box, Type FDC Deep Style Feed-Through, 2 Outlets, 1 Gangs, 1 Knockouts, 3/4 in Hub, NPT Hub, Hub Cable Entry Size, Lug Mount, Iron, Zinc Plated, Gray, 2-3/4 in W x 2-13/16 in D x 4-9/32 in H
Additional Description: TB -FDC2-TB 3/4 IN, 1G-DP BOX, IRON, THRU-FEED
Catalog Description: 3/4 Inch Deep 1 Gang Cast Device Box, Gray Iron Zinc Plated, Thru-Feed, Suitable for Wet Locations When Used with Gasketed Covers
FDC2-TB Application
For industrial grade device boxes, raintight covers protect wiring devices, switches, electronic components, terminal blocks in dry, damp and wet locationsFDC2-TB Item Features
- All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
- Suitable for wet locations when used with gasketed covers
- Available in shallow (FS) or deep (FD) boxes. use FD if device to be enclosed exceeds 15/8 in depth
- Use blank bodies where special arrangements of conduit hubs or entrances are required
- All cover holes are #6-32 AWFG
- Mounting lugs are standard on all FS and FD boxes
- Accommodate wiring devices
- Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
- Provide openings to make splices and taps in conductors
- Connect conduit sections
- Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- 0.755 to 0.810 in Dia throat
- (1) each end hub cable entry
- Sand cast Al alloy and sheet steel covers and neoprene gaskets
- Zinc plated with aluminum acrylic paint finish
- Class 30 iron alloy material
FDC2-TB Standards
CSA C22.2 18|UL 514A/E2969SKU #2149777Part Number #FDC2-TBUNSPSC39121315UPC00786210197104
