Brand: Thomas & Betts

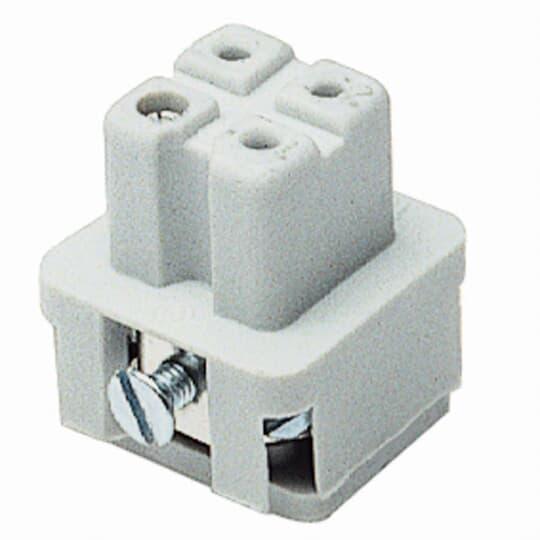

Thomas & Betts FS104A Pos-E-Kon Terminal Insert
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts FS104A Pos-E-Kon Terminal Insert
Brand: Thomas & Betts
Thomas & Betts FS104A Pos-E-Kon Terminal Insert
Part #:FS104A
SKU #: 2188610
$30.34/EA
Key Features
Part #:FS104A
SKU #: 2188610
Brand: Thomas & Betts
Number of Positions: 4
Series: A Series
Specifications: 10/16 A, 600 VAC
Suitable For Use With: A Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
$30.34/EA
- 4 contacts with ground
- Integral screw terminal contacts that provide for easy terminal wiring and fast assembly
- Industrial connector
- Standard wire protection saddles prevent cutting of strands during assembly
- Small, compact size screw terminal
- Use small blade screwdriver to push wire entry tab in for easy contact removal
Specifications
Brand: Thomas & Betts
Number of Positions: 4
Series: A Series
Specifications: 10/16 A, 600 VAC
Suitable For Use With: A Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
Type: Compact
Wire Size: 18 to 14, 18 to 14 AWG
Connection type: Female Screw
Country of origin: DE
Material: Glass Filled Thermoplastic
Manufacturer Name: ABB
UNSPSC: 39121410
UPC: 00786210516493
Thomas & Betts FS104A Pos-E-Kon Terminal Insert
Pos-E-Kon Terminal Insert, Compact, Series: A Series, 4 Positions, 18 to 14 AWG Wire, Female Screw Connection, For Use With: A Series Connector, -40 to 257 deg F, Specifications: 10/16 A, 600 VAC, Glass Filled Thermoplastic
Additional Description: TB -FS104A FEM SCR TERM INSERT FOR A-SER3/4CNT
Catalog Description: Female screw terminal insert. For use with A series, 3 or 4 contacts with ground.
Item Features
Item FeaturesCSA 70013|UL 94 V-0 Flammability Rated
