Brand: Thomas & Betts

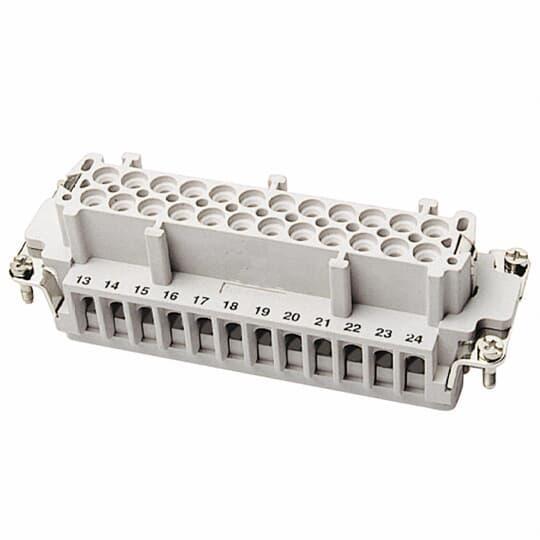

Thomas & Betts FS132B Pos-E-Kon Terminal Insert
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts FS132B Pos-E-Kon Terminal Insert
Brand: Thomas & Betts
Thomas & Betts FS132B Pos-E-Kon Terminal Insert
Part #:FS132B
SKU #: 390585
$52.87/EA
Key Features
Part #:FS132B
SKU #: 390585
Brand: Thomas & Betts
Number of Positions: 32
Series: B Series
Specifications: 16 A, 600 VAC
Suitable For Use With: B Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
$52.87/EA
- 32 contacts with ground
- Integral screw terminal contacts that provide for easy terminal wiring and fast assembly
- Allows single access direction panel build wiring and easy terminal ID for service and testing
- Standard wire protection saddles prevent cutting of strands during assembly
- Standard size screw terminal
- Use small blade screwdriver to push wire entry tab in for easy contact removal
- IP65 locked positions per DIN VDE 0470
Specifications
Brand: Thomas & Betts
Number of Positions: 32
Series: B Series
Specifications: 16 A, 600 VAC
Suitable For Use With: B Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
Type: Standard
Wire Size: 20 to 14, 20 to 14 AWG
Connection type: Female Screw
Country of origin: DE
Material: Glass Filled Thermoplastic
Manufacturer Name: ABB
UNSPSC: 39121410
UPC: 00786210116419
Thomas & Betts FS132B Pos-E-Kon Terminal Insert
Pos-E-Kon Terminal Insert, Standard, Series: B Series, 32 Positions, 20 to 14 AWG Wire, Female Screw Connection, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 VAC, Glass Filled Thermoplastic
Additional Description: TB -FS132B FEMALE INSERT, SCREW
Catalog Description: Female screw terminal insert. For use with B series.
Item FeaturesFor panel base applications
Item Features
Item FeaturesCSA 70013|VDE 0470|IEC 529|UL 94 V-0 Flammability Rated
