Brand: Thomas & Betts
Thomas & Betts FS2-TB Cast Device Box
Part Number # FS2-TB
SKU # 2149607
$46.96 / Each
Thomas & Betts FS2-TB Key Features
Brand: Thomas & Betts
Part Number # FS2-TB
SKU #2149607
Cable Entry Size: Hub
Dimensions: 2-3/4 in W x 2 in D x 4-9/32 in H, 4-9/32 in H x 2-3/4 in W x 2 in D
Finish: Zinc Plated
Hub Size: 3/4, 3/4 in
Hub Style: NPT
Number of Gangs: 1
Number of Knockouts: 1
Number of Outlets: 1
Type: Type FS Dead End Shallow Style
Color: Gray
Country of origin: CN
Material: Iron Alloy
Mounting type: Lug
Manufacturer Name: ABB
UNSPSC: 39121315
UPC: 00786210196978
$46.96 / Each

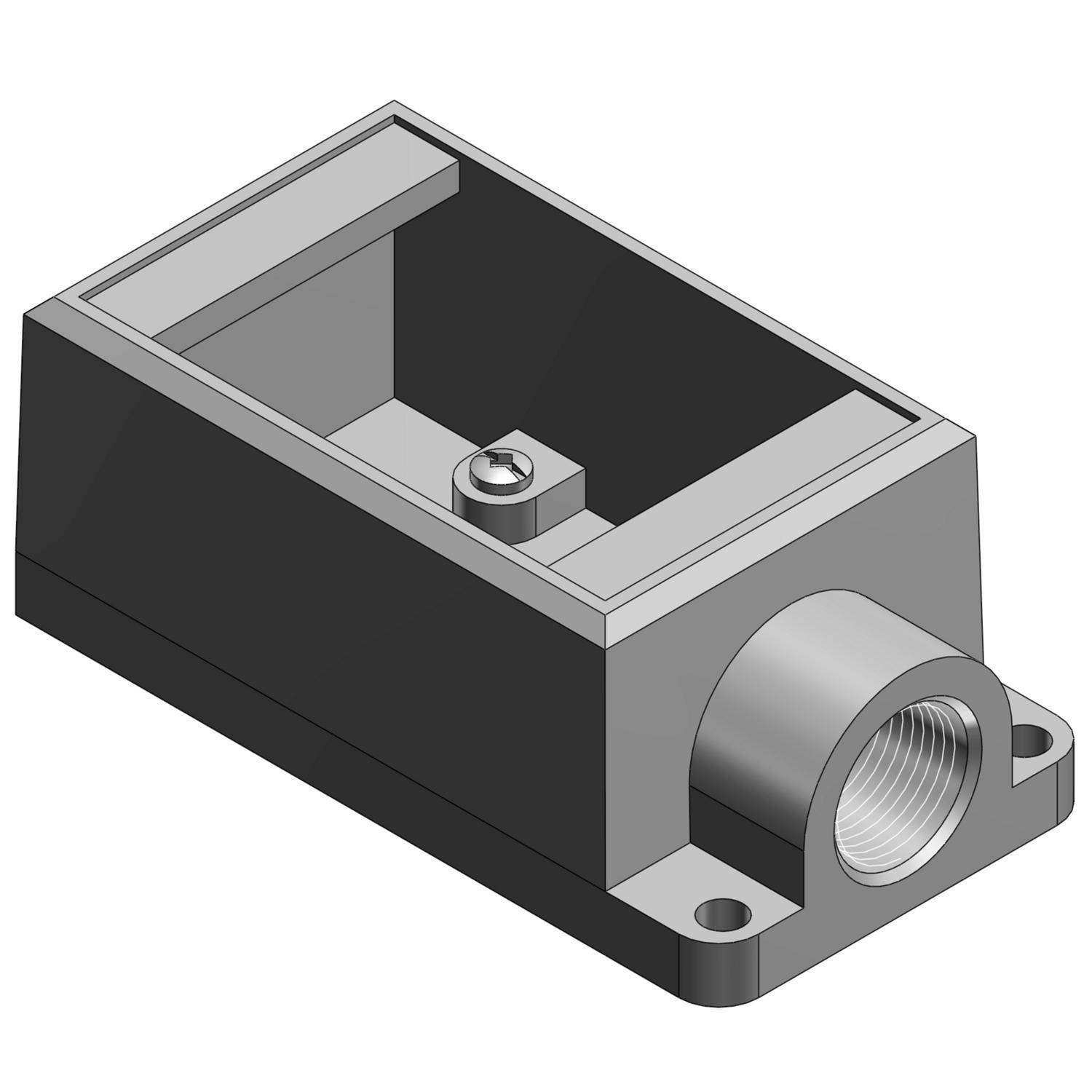

Thomas & Betts FS2-TB Cast Device Box
Brand: Thomas & Betts
Part Number: FS2-TB
T&B Cast Device Box, Type FS Dead End Shallow Style, 1 Outlets, 1 Gangs, 1 Knockouts, 3/4 in Hub, NPT Hub, Hub Cable Entry Size, Lug Mount, Iron Alloy, Zinc Plated, Gray, 2-3/4 in W x 2 in D x 4-9/32 in H
Additional Description: TB -FS2-TB 3/4 IN, 1G-SHALLOW BOX, IRON, D-END
Catalog Description: 3/4 Inch Shallow 1 Gang Cast Device Box, Gray Iron Zinc Plated, Dead End, Suitable for Wet Locations When Used with Gasketed Covers
FS2-TB Application
For protecting wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locationsFS2-TB Item Features
- All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
- Suitable for wet locations when used with gasketed covers
- Use blank bodies where special arrangements of conduit hubs or entrances are required
- All cover holes are #6-32 AWFG
- Mounting lugs are standard on all FS and FD boxes
- Accommodate wiring devices
- Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
- Provide openings to make splices and taps in conductors
- Connect conduit sections
- Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- 0.755 to 0.810 in Dia throat
- (1) end hub cable entry
- Sand cast Al alloy and sheet steel covers and neoprene gaskets
- Zinc plated with aluminum acrylic paint finish
- Class 30 iron alloy material
- For used to provide access to conductors for maintenance and future system changes
FS2-TB Standards
CSA 001472|UL File No. E2527/E2969SKU #2149607Part Number #FS2-TBUNSPSC39121315UPC00786210196978
