Brand: Thomas & Betts

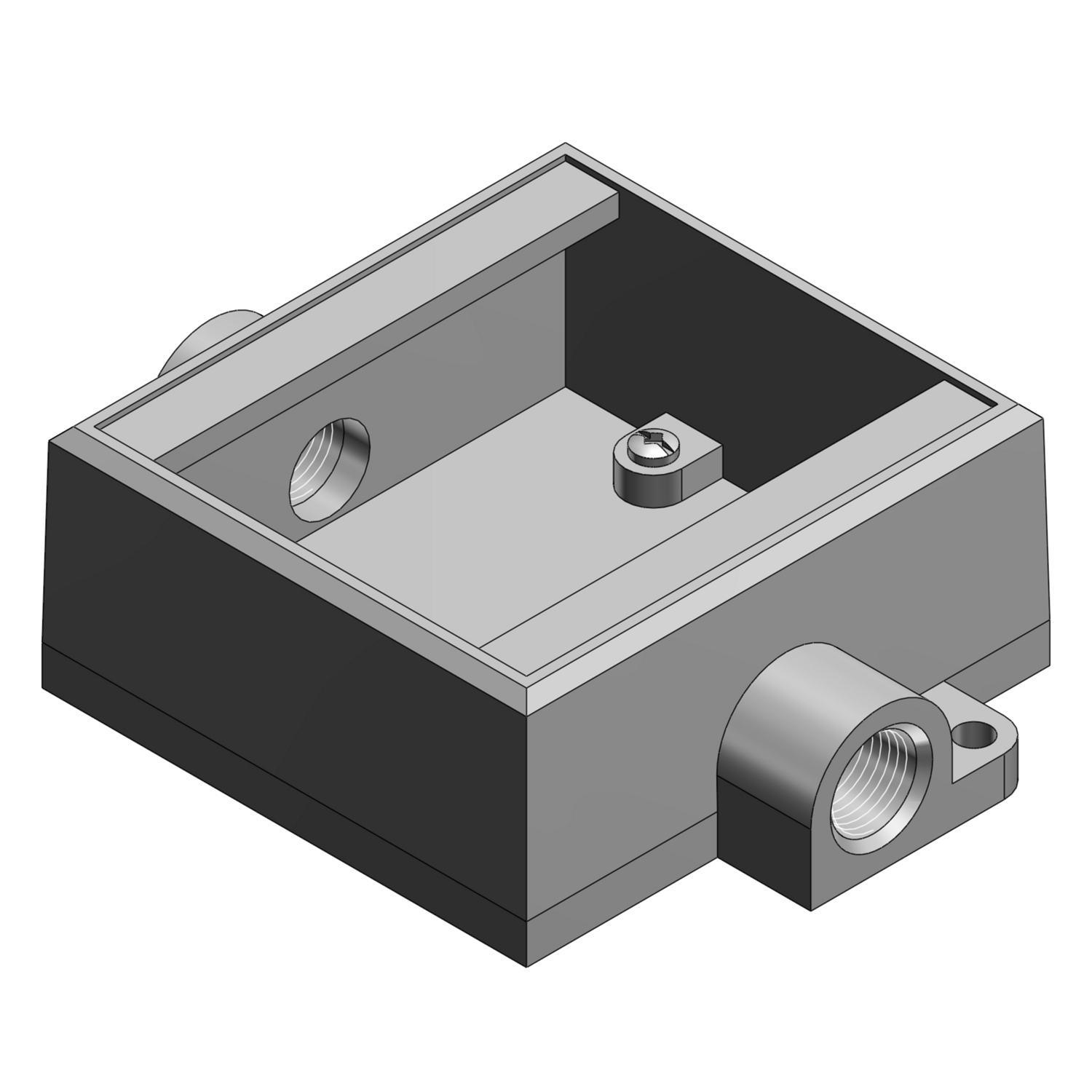

Thomas & Betts FSC12-TB Cast Device Box
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts FSC12-TB Cast Device Box
Brand: Thomas & Betts
Thomas & Betts FSC12-TB Cast Device Box
Part #:FSC12-TB
SKU #: 2237668
$416.85/5EA
Key Features
Part #:FSC12-TB
SKU #: 2237668
Brand: Thomas & Betts
Cable Entry Size: Hub
Dimensions: 4-5/8 in W x 2 in D x 4-9/32 in H, 4-9/32 in H x 4-5/8 in W x 2 in D
Finish: Zinc Plated
Hub Size: 1/2, 1/2 in
Hub Style: NPT
$416.85/5EA
- All hubs have NPT threads with a minimum of five full threads and integral bushing, internal grounding screw standard on boxes
- Suitable for wet locations when used with gasketed covers
- Use blank bodies where special arrangements of conduit hubs or entrances are required
- All cover holes are #6-32 AWFG
- Mounting lugs are standard on all FS and FD boxes
- Accommodate wiring devices
- Act as pull boxes for conductors in a threaded rigid conduit system, including an internal ground screw
- Provide openings to make splices and taps in conductors
- Connect conduit sections
- Industrial grade device boxes and rain tight covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- 0.570 to 0.610 in Dia throat
- (1) top/(1) bottom hub cable entry
- Sand cast Al alloy and sheet steel covers and neoprene gaskets
- Zinc plated with aluminum acrylic paint finish
- Class 30 iron alloy material
- For used to provide access to conductors for maintenance and future system changes
Specifications
Brand: Thomas & Betts
Cable Entry Size: Hub
Dimensions: 4-5/8 in W x 2 in D x 4-9/32 in H, 4-9/32 in H x 4-5/8 in W x 2 in D
Finish: Zinc Plated
Hub Size: 1/2, 1/2 in
Hub Style: NPT
Number of Gangs: 2
Number of Knockouts: 2
Number of Outlets: 2
Type: Type FSC Feed-Through Shallow Style
Color: Gray
Country of origin: US
Material: Iron Alloy
Mounting type: Lug
Manufacturer Name: ABB
UNSPSC: 39121315
UPC: 00786210197197
Item FeaturesFor protecting wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Item Features
Item FeaturesCSA 001472|UL File No. E2527/E2969
