Part Number # GSB128
SKU # 2310537
Image provided may only be a representation of
final product and may include optional equipment
GSB128

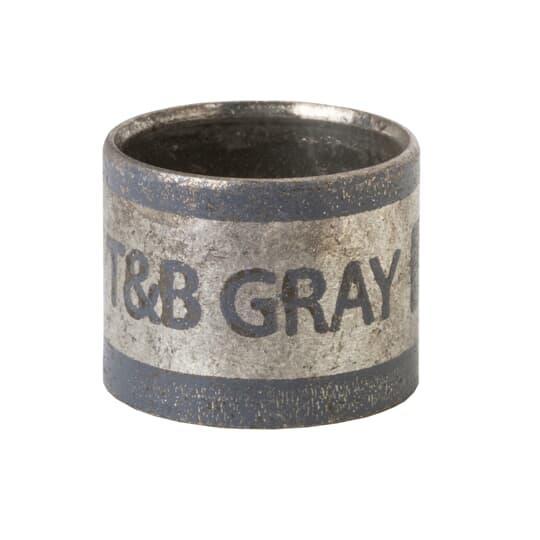

Thomas & Betts GSB128 Sta-Kon Inner Sleeve Connector
Part Number # GSB128
SKU # 2310537
Thomas & Betts GSB128 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | GSB128 |
| SKU #: | 2310537 |
| Conductor Type: | Bronze |
| Connector Type: | Hexagonal Shaped Crimp |
| Dimensions: | 0.128 in ID x 0.152 in OD |
| Finish: | Tin Plated |
| Series: | GSB |
| Type: | 2-Piece |
| Country of origin: | US |
| Length: | 5/16, 5/16 in |
| Material: | Hard Bronze |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210812977 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts GSB128 Sta-Kon Inner Sleeve Connector
Brand: Thomas & Betts
Part Number: GSB128
Shield-Kon Inner Sleeve Connector, 2-Piece, Series: GSB, Bronze Conductor, 5/16 in Length, Hexagonal Shaped Crimp Connector, Hard Bronze, Tin Plated, Gray, 0.128 in ID x 0.152 in OD
Additional Description: TB -GSB128 (N) 2-PC INNER SLVE CONN SLV I.D. 0.128 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Tin Plated
GSB128 Application
Aerospace, Communications, Electronics, Radio, Telephone and TV ApplicationsGSB128 Item Features
- Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve)
- For solderless crimp connection
- Inner sleeve for the hexagonal range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal shaped crimp)
- For grounding shielded and coaxial cables
- The sleeves are color coded according to their size
SKU #2310537Part Number #GSB128UNSPSC39121432UPC00786210812977
