GSB261

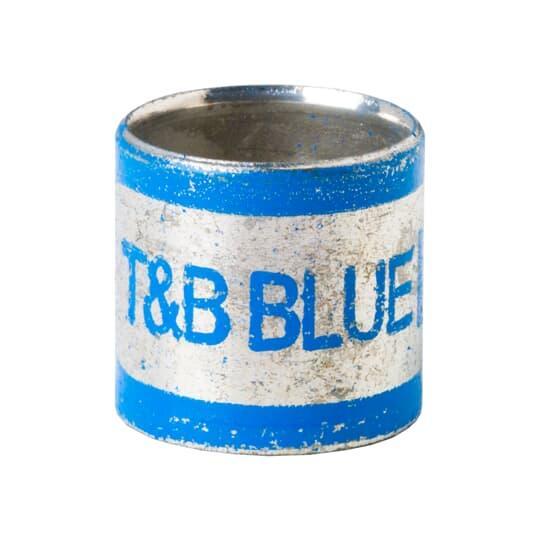

Thomas & Betts GSB261 Sta-Kon Inner Sleeve Connector
Part Number # GSB261
SKU # 2308748
Thomas & Betts GSB261 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | GSB261 |
| SKU #: | 2308748 |
| Conductor Type: | Bronze |
| Connector Type: | Hexagonal Shaped Crimp |
| Dimensions: | 0.261 in ID x 0.297 in OD |
| Finish: | Tin Plated |
| Series: | GSB |
| Type: | 2-Piece |
| Country of origin: | US |
| Length: | 5/16, 5/16 in |
| Material: | Hard Bronze |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210813202 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts GSB261 Sta-Kon Inner Sleeve Connector
Brand: Thomas & Betts
Part Number: GSB261
Shield-Kon Inner Sleeve Connector, 2-Piece, Series: GSB, Bronze Conductor, 5/16 in Length, Hexagonal Shaped Crimp Connector, Hard Bronze, Tin Plated, Blue, 0.261 in ID x 0.297 in OD
Additional Description: TB -GSB261 (N) 2-PC INNER SLV CONN BLUE I.D. 0.261 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .261 Inches/6.63mm, Outer Diameter .297 Inches/7.54mm, Color Blue, Hard Bronze, Tin Plated
GSB261 Application
Aerospace, Communications, Electronics, Radio, Telephone and TV ApplicationsGSB261 Item Features
- Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve)
- For solderless crimp connection
- Inner sleeve for the hexagonal range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal shaped crimp)
- For grounding shielded and coaxial cables
- The sleeves are color coded according to their size
