Brand: Thomas & Betts

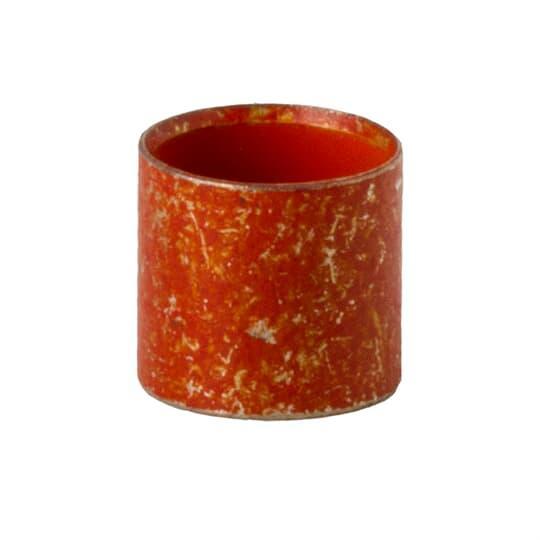

Thomas & Betts GSB348 Sta-Kon Inner Sleeve Connector
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts GSB348 Sta-Kon Inner Sleeve Connector
Brand: Thomas & Betts
Thomas & Betts GSB348 Sta-Kon Inner Sleeve Connector
Part #:GSB348
SKU #: 2242603
$1520.00/1000EA
Key Features
Part #:GSB348
SKU #: 2242603
Brand: Thomas & Betts
Conductor Type: Bronze
Connector Type: Hexagonal Shaped Crimp
Dimensions: 8.84 mm ID x 10.2 mm OD
Finish: Tin Plated
Series: GSB
$1520.00/1000EA
- Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve)
- For solderless crimp connection
- Inner sleeve for the hexagonal range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal shaped crimp)
- For grounding shielded and coaxial cables
- The sleeves are color coded according to their size
Specifications
Brand: Thomas & Betts
Conductor Type: Bronze
Connector Type: Hexagonal Shaped Crimp
Dimensions: 8.84 mm ID x 10.2 mm OD
Finish: Tin Plated
Series: GSB
Type: 2-Piece
Color: Orange
Country of origin: US
Length: 7.9, 7.9 mm
Material: Hard Bronze
Manufacturer Name: ABB
UNSPSC: 39121432
UPC: 00786210863795
Thomas & Betts GSB348 Sta-Kon Inner Sleeve Connector
Shield-Kon Inner Sleeve Connector, 2-Piece, Series: GSB, Bronze Conductor, 7.9 mm Length, Hexagonal Shaped Crimp Connector, Hard Bronze, Tin Plated, Orange, 8.84 mm ID x 10.2 mm OD
Additional Description: TB -GSB348 2-PC INNER SLV CONN ORG I.D. 0.348 PKG = 1000 PC'S
Catalog Description: Two Piece Inner Sleeve Connector for Hexagonal Range, Length 7.9mm, Inner Diameter 8.84mm, Outer Diameter 10.20mm, Color Orange, Hard Bronze, Tin Plated
Item FeaturesAerospace, Communications, Electronics, Radio, Telephone and TV Applications
