GUA36-G

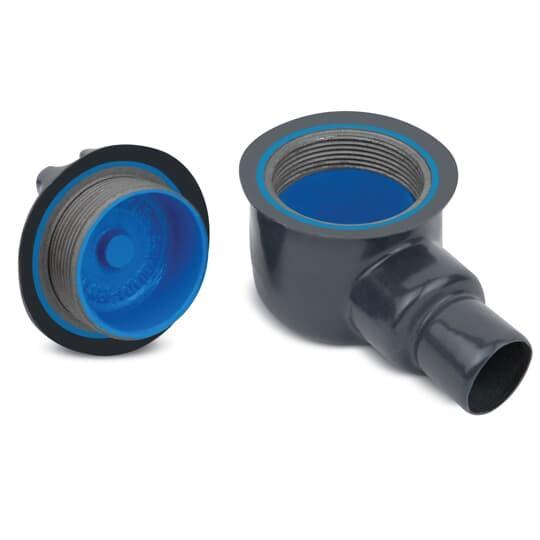

Thomas & Betts GUA36-G Ocal Explosionproof Conduit Outlet Box
Part Number # GUA36-G
SKU # 2426666
$662.06 / Each
Typical price:$806.50 / Each
Thomas & Betts GUA36-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | GUA36-G |
| SKU #: | 2426666 |
| Capacity: | 16.2 cu-in |
| Cover Opening Size: | 3 in |
| Finish: | Zinc Plated |
| Series: | GUA |
| Size: | 1 in |
| Color: | Gray |
| Country of origin: | US |
| Material: | Iron/Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121331 |
| UPC: | 00704508384012 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$662.06 / Each
Typical price:$806.50 / Each
Quantity:
- Ocal Explosionproof Conduit Outlet Box, Series: GUA, 1 in Size, 3 in Cover Opening, 16.2 cu-in Capacity, Iron/Aluminum, Gray, Zinc Plated
GUA36-G Application
For use in hazardous locations to provide access to conductors for pulling, splicing, maintenance and future changes/upgradesGUA36-G Item Features
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
- Nominal 0.002 in (2 mil) blue urethane coating on both interior and exterior and nominal 0.04 in (40 mil) PVC coating bonded to exterior
- All hubs have a minimum of 5 full threads, integral bushing and Pressure sealing sleeves
- Explosion proof, dust ignitionproof, raintight
- Provide access to conductors for maintenance and future system changes
- Mounting outlets for fixtures with proper covers
- To change direction in rigid conduit systems
- Join 2 or more pieces of conduit long run
- Die cast aluminum cover
- O-ring gasket provided to assure NEMA 4 rating
- PVC double coated aluminum
GUA36-G Standards
CSA File No. 020945|Class I Div 1, 2 Group C, D|Class II Division 1 Groups E F G|Class III Division 1, 2|NEMA 3/4/7/CD/9/EFG|UL File No. E30513SKU #2426666Part Number #GUA36-GUNSPSC39121331UPC00704508384012
