Part Number # GUAD24-G
SKU # 2449121
Image Disclaimers Message
Brand: Thomas & Betts
GUAD24-G

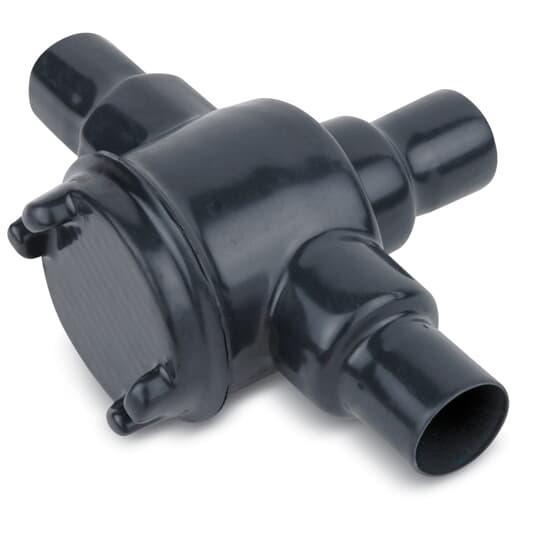

Thomas & Betts GUAD24-G
Part Number # GUAD24-G
SKU # 2449121
$457.99 / Each
Typical price:$557.90 / Each
Thomas & Betts GUAD24-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | GUAD24-G |
| SKU #: | 2449121 |
| Capacity: | 5.2 cu-in |
| Cover Opening Size: | 2 in |
| Finish: | PVC Coated/Zinc Plated |
| Series: | GUAD |
| Size: | 3/4 in |
| Suitable For Use With: | Hazardous Location Conduit Body and Fitting |
| Type: | Explosionproof T-Shape |
| Color: | Gray |
| Country of origin: | US |
| Material: | Iron/Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 0 |
| UPC: | 00704508384760 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$457.99 / Each
Typical price:$557.90 / Each
Quantity:
- Ocal Conduit Outlet Box, Explosionproof T-Shape, Series: GUAD, 3/4 in Size, 2 in Cover Opening, 5.2 cu-in Capacity, For Use With: Hazardous Location Conduit Body and Fitting, Iron/Aluminum, Gray, PVC Coated/Zinc Plated
GUAD24-G Application
For use in hazardous locations to provide access to conductors for pulling, splicing, maintenance and future changes/upgradesGUAD24-G Includes
Internal Grounding Screw, Die Cast Aluminum Cover and O-Ring GasketGUAD24-G Item Features
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
- Nominal 0.002 in (2 mil) blue urethane coating on both interior and exterior and nominal 0.04 in (40 mil) PVC coating bonded to exterior
- All hubs have a minimum of 5 full threads, integral bushing and Pressure sealing sleeves
- Explosion proof, dust ignitionproof, raintight
- Provide access to conductors for maintenance and future system changes
- Mounting outlets for fixtures with proper covers
- To change direction in rigid conduit systems
- Join 2 or more pieces of conduit long run
- O-ring gasket provided to assure NEMA 4 rating
GUAD24-G Standards
CSA File No. 020945|UL File No. E30513SKU #2449121Part Number #GUAD24-GUNSPSC0UPC00704508384760
