Part Number # GUAL16-TB
SKU # 2464988
GUAL16-TB
Thomas & Betts GUAL16-TB
Part Number # GUAL16-TB
SKU # 2464988
$144.01 / Each
Typical price:$192.98 / Each
Thomas & Betts GUAL16-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | GUAL16-TB |
| SKU #: | 2464988 |
| Capacity: | 13.4 cu-in |
| Dimensions: | 3-1/2 in OD |
| Series: | GUAL |
| UNSPSC: | 39131708 |
| UPC: | 00786210344539 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$144.01 / Each
Typical price:$192.98 / Each
Quantity:

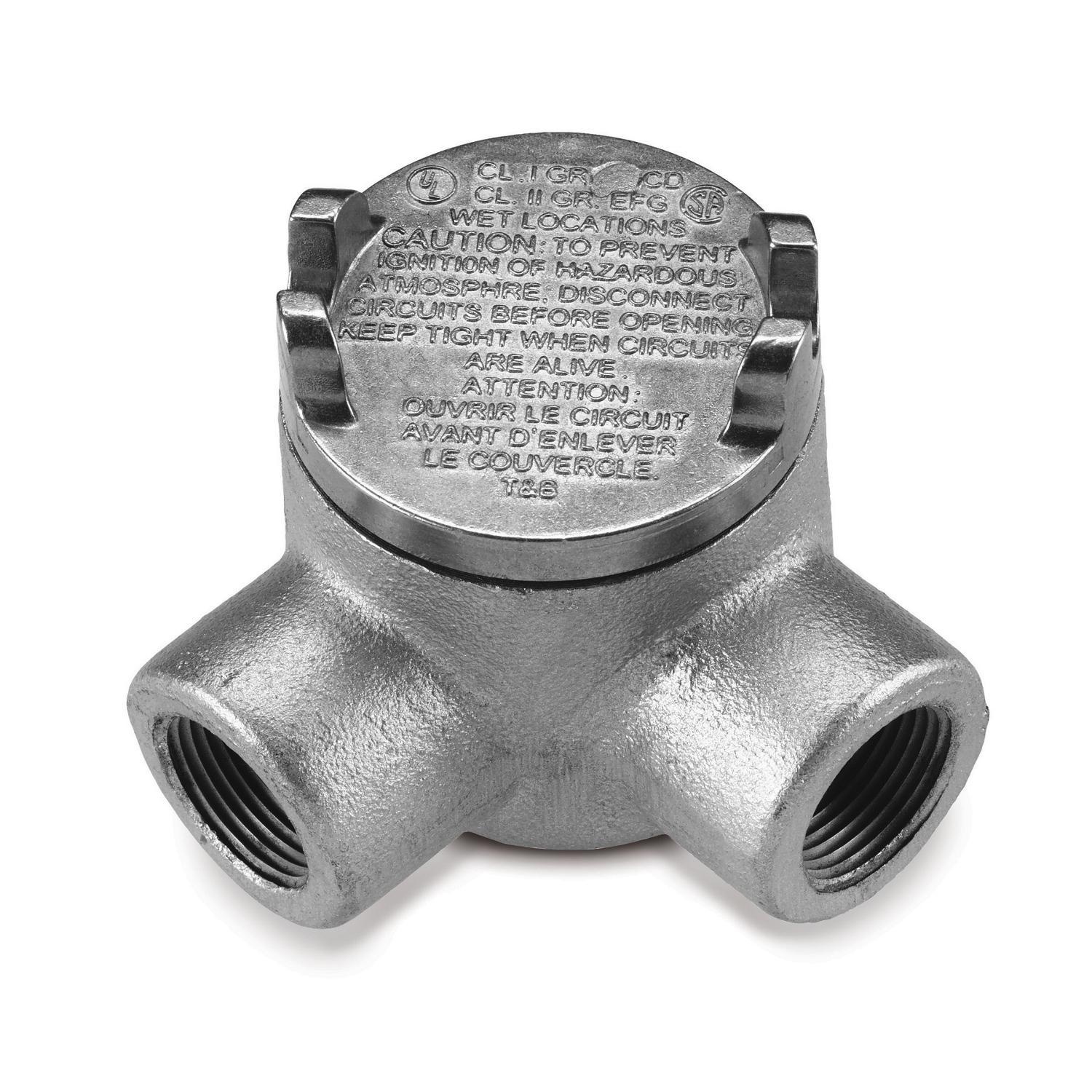

- T&B Conduit Outlet Box, Explosionproof, Series: GUAL, 1/2 in, 13.4 cu-in, Ductile Iron, Zinc Plated, 3-1/2 in OD
GUAL16-TB Application
For use to allow mounting of fixture outlets when used with appropriate covers, easy access to wiring, junction in conduit for wire pulling and splices, changes direction in rigid conduit systems, attaches two or more pieces of conduit long runs and guards against damage to wires in rigid conduit and mounting of fixture outlets when used with appropriate covers and wet locationsGUAL16-TB Includes
Internal Grounding Screw, Cover and O-Ring GasketGUAL16-TB Item Features
- All hubs have a minimum of 5 full threads and integral bushing
- All boxes are furnished with internal grounding screw
- Provides easy access to wiring
- Provides junction in conduit for wire pulling and splices
- Changes direction in rigid conduit systems
- Attaches two or more pieces of conduit long run
- Guards against damage to wires in rigid conduit
- Cover supplied with O-ring gasket
- Die cast aluminum cover with natural finish
- Dust, ignitionproof and raintight
- 0.57 to 0.61 in Dia throat
- Zinc plated with aluminum acrylic paint boxes
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
GUAL16-TB Standards
UL E202368, CSASKU #2464988Part Number #GUAL16-TBUNSPSC39131708UPC00786210344539
Image provided may only be a representation of final product and may include optional equipment
