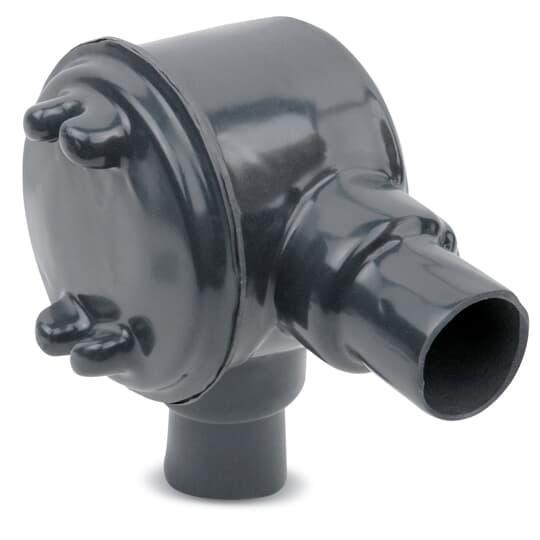

Thomas & Betts GUAL36-G Ocal Conduit Outlet Box
Part Number # GUAL36-G
SKU # 2426667
$331.52 / Each
Thomas & Betts GUAL36-G Key Features
Brand: Thomas & Betts
Part Number # GUAL36-G
SKU #2426667
Capacity: 16.2 cu-in
Cover Opening Size: 3 in
Finish: PVC Coated/Zinc Plated
Series: GUAL
Size: 1 in
Suitable For Use With: Hazardous Location Conduit Body and Fitting
Type: Explosionproof L-Shape
Color: Gray
Country of origin: US
Material: Iron/Aluminum
Manufacturer Name: ABB
UNSPSC: 39121331
UPC: 00704508385248
$331.52 / Each
Thomas & Betts GUAL36-G Ocal Conduit Outlet Box
Brand: Thomas & Betts
Part Number: GUAL36-G
Ocal® Conduit Outlet Box, Explosionproof L-Shape, Series: GUAL, 1 in Size, 3 in Cover Opening, 16.2 cu-in Capacity, For Use With: Hazardous Location Conduit Body and Fitting, Iron/Aluminum, Gray, PVC Coated/Zinc Plated
Additional Description: TB -GUAL36-G CONDBOX L SHAPE 1IN OPNG 3IN GRY
Catalog Description: PVC Double-Coated Conduit Outlet Box for Hazardous Locations, GUAL Type - L Shape, Pipe Size 1 Inch/27 Metric, Box is Ductile Iron with Zinc Plating, Cover is Die Cast Aluminum, Cover Opening 3.00 Inch/76.20 Millimeters, Gray
GUAL36-G Application
For use in hazardous locations to provide access to conductors for pulling, splicing, maintenance and future changes/upgradesGUAL36-G Includes
Die Cast Aluminum Cover and O-Ring GasketGUAL36-G Item Features
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
- Nominal 0.002 in (2 mil) blue urethane coating on both interior and exterior and nominal 0.04 in (40 mil) PVC coating bonded to exterior
- All hubs have a minimum of 5 full threads, integral bushing and Pressure sealing sleeves
- Explosion proof, dust ignitionproof, raintight
- Provide access to conductors for maintenance and future system changes
- Mounting outlets for fixtures with proper covers
- To change direction in rigid conduit systems
- Join 2 or more pieces of conduit long run
- O-ring gasket provided to assure NEMA 4 rating
GUAL36-G Standards
CSA File No. 020945|Class I Div 1, 2 Group C, D|Class II Division 1 Groups E F G|Class III Division 1, 2|NEMA 3/4/7/CD/9/EFG|UL File No. E30513SKU #2426667Part Number #GUAL36-GUNSPSC39121331UPC00704508385248
