Part Number # GUAN14-TB
SKU # 2464987
GUAN14-TB
Thomas & Betts GUAN14-TB
Part Number # GUAN14-TB
SKU # 2464987
Thomas & Betts GUAN14-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | GUAN14-TB |
| SKU #: | 2464987 |
| Capacity: | 6.8 cu-in |
| Dimensions: | 2.5 in W x 2.13 in H |
| Series: | GUAN |
| UNSPSC: | 39131708 |
| UPC: | 00786210344591 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts GUAN14-TB
Brand: Thomas & Betts
Part Number: GUAN14-TB

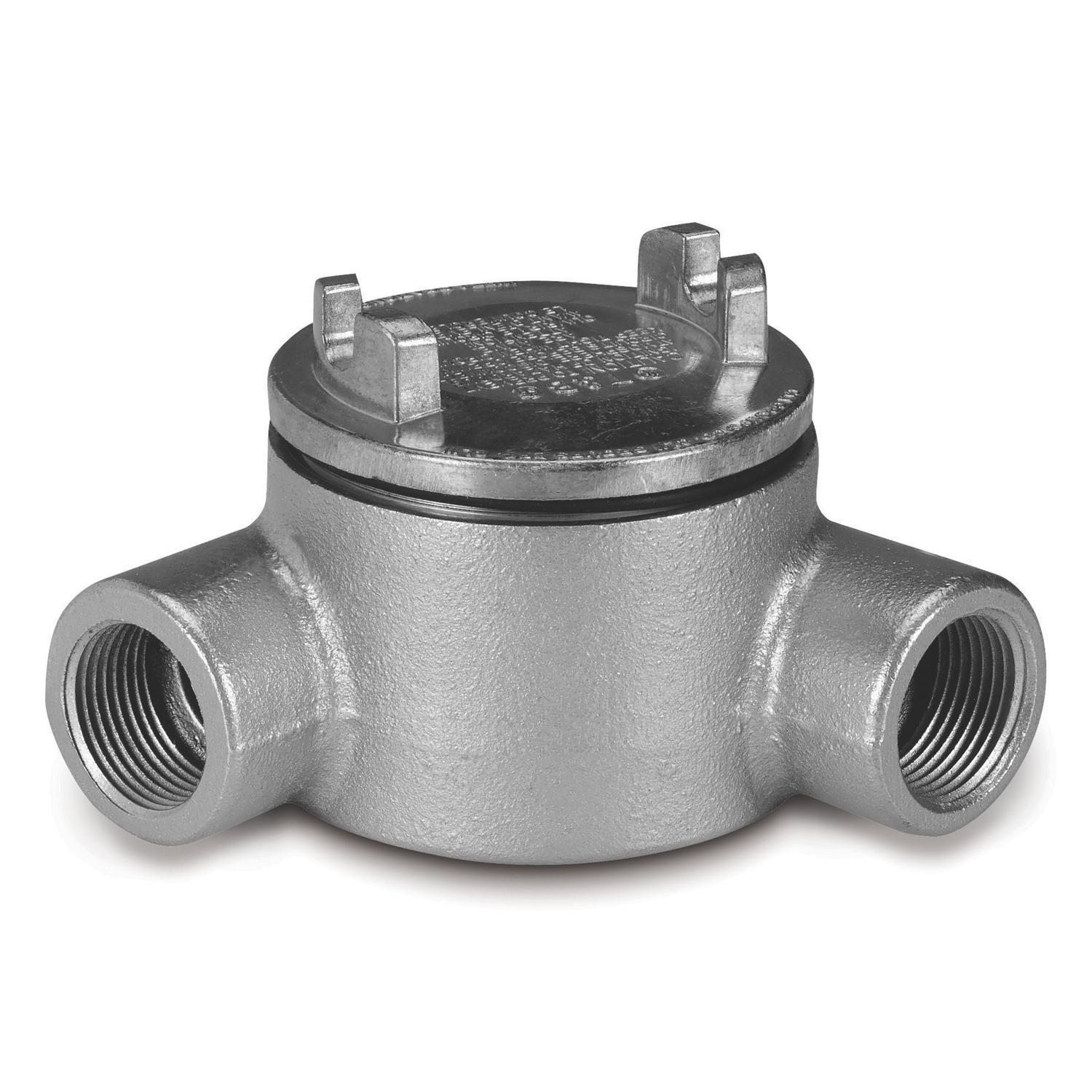

T&B® Conduit Outlet Box, Explosionproof, Series: GUAN, 1/2 in Size, 6.8 cu-in Capacity, For Use With: Hazardous Location Conduit Body and Fitting, Ductile Iron, Zinc Plated, 2.13 in H x 2.5 in W Dimensions
Additional Description: TB -GUAN14-TB (N) 1/2 INCH GUAN-BODY/CVR,O.D.-2-1/2 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1/2 Inch GUAN Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 6.8 Cubic Inch
GUAN14-TB Application
For use to allow mounting of fixture outlets when used with appropriate covers, easy access to wiring, junction in conduit for wire pulling and splices, changes direction in rigid conduit systems, attaches two or more pieces of conduit long runs and guards against damage to wires in rigid conduitGUAN14-TB Includes
Internal Grounding Screw, Die Cast Aluminum Cover and O-Ring GasketGUAN14-TB Item Features
- All hubs have a minimum of five full threads and integral bushing
GUAN14-TB Standards
Class I, Division 1, 2 Group C, D|Class II, Division 1, Group E, F, G|Class III, Division 1, 2|CSA C22.2 File No. 30|NEMA 3/4/7/CD/9 EFG|UL 514A|UL File No. 886/E35010/E202368SKU #2464987Part Number #GUAN14-TBUNSPSC39131708UPC00786210344591
Image provided may only be a representation of final product and may include optional equipment
