Brand: Thomas & Betts
GUAT14-G

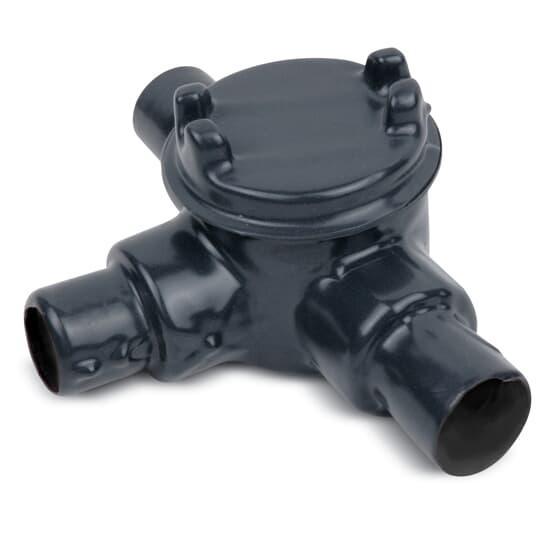

Thomas & Betts GUAT14-G Ocal OCAL-BLUE Conduit Outlet Box
Part Number # GUAT14-G
SKU # 2121020
$328.48 / Each
Typical price:$400.15 / Each
Thomas & Betts GUAT14-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | GUAT14-G |
| SKU #: | 2121020 |
| Capacity: | 7, 7 cu-in |
| Cover Opening Size: | 2, 2 in |
| Finish: | PVC Coated/Zinc Plated |
| Series: | GUAT |
| Size: | 1/2, 1/2 in |
| Suitable For Use With: | Hazardous Location Conduit Body and Fitting |
| Type: | Explosionproof T-Shape |
| Country of origin: | US |
| Material: | Iron/Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121331 |
| UPC: | 00704508385798 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$328.48 / Each
Typical price:$400.15 / Each
Quantity:
- Ocal OCAL-BLUE Conduit Outlet Box, Explosionproof T-Shape, Series: GUAT, 1/2 in Size, 2 in Cover Opening, 7 cu-in Capacity, For Use With: Hazardous Location Conduit Body and Fitting, Iron/Aluminum, Gray, PVC Coated/Zinc Plated
GUAT14-G Application
For use in hazardous locations to provide access to conductors for pulling, splicing, maintenance and future changes/upgradesGUAT14-G Includes
Internal Grounding Screw, Die Cast Aluminum Cover and O-Ring GasketGUAT14-G Item Features
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
- Nominal 0.002 in (2 mil) blue urethane coating on both interior and exterior and nominal 0.04 in (40 mil) PVC coating bonded to exterior
- All hubs have a minimum of 5 full threads, integral bushing and Pressure sealing sleeves
- Provide access to conductors for maintenance and future system changes
- Mounting outlets for fixtures with proper covers
- To change direction in rigid conduit systems
- Join 2 or more pieces of conduit long run
- O-ring gasket provided to assure NEMA 4 rating
GUAT14-G Standards
UL 886|UL File No. E35010|UL File No. E30513|UL 514A|CSA C22.2 File No. 30|CSA File No. 020945|Class I Div 1, 2 Group C, D|Class II Division 1 Groups E F G|Class III Division 1, 2|NEMA 3/4/7/CD/9/EFGSKU #2121020Part Number #GUAT14-GUNSPSC39121331UPC00704508385798
