Brand: Thomas & Betts

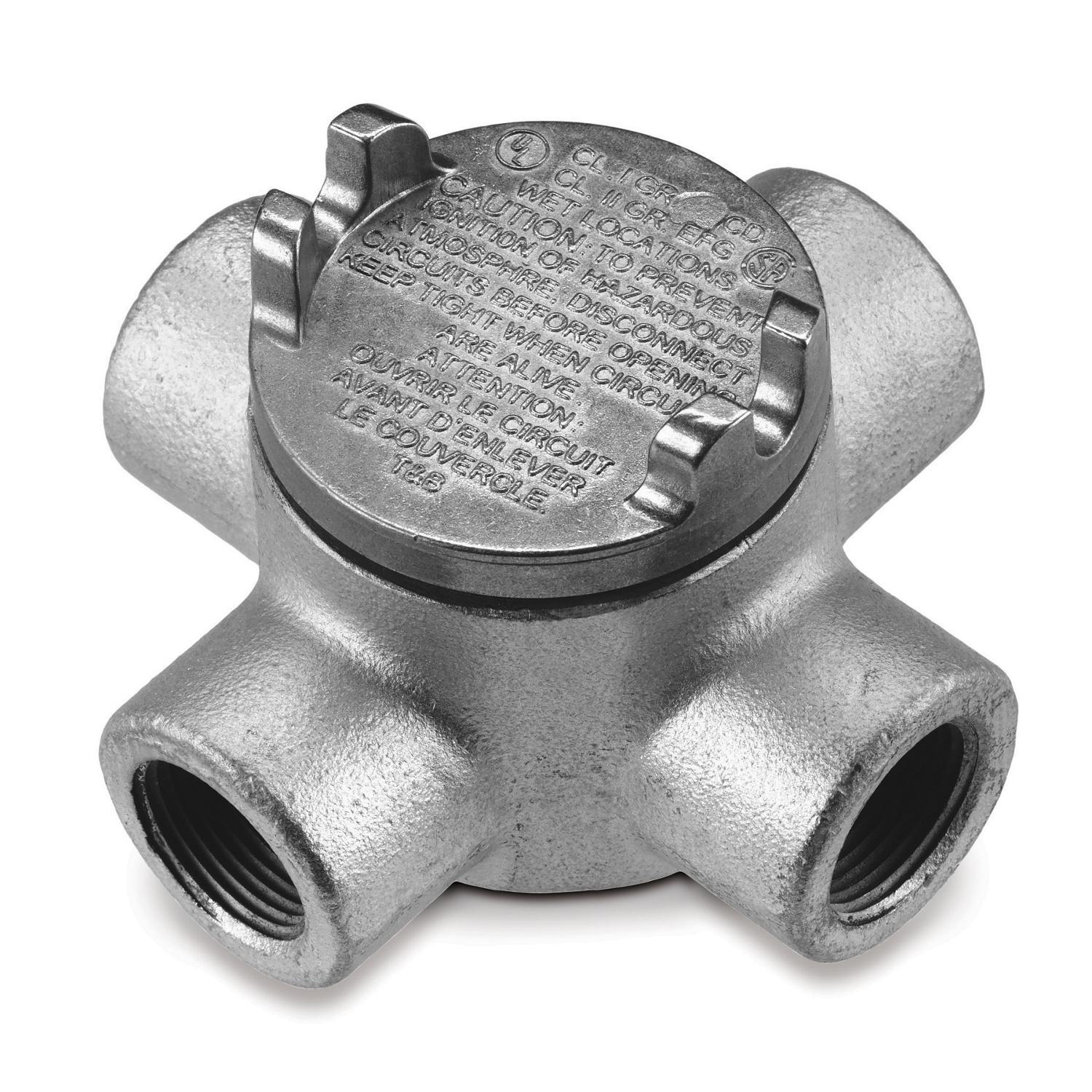

Thomas & Betts GUAX26-TB Explosionproof Conduit Outlet Box
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts GUAX26-TB Explosionproof Conduit Outlet Box
Brand: Thomas & Betts
Thomas & Betts GUAX26-TB Explosionproof Conduit Outlet Box
Part #:GUAX26-TB
SKU #: 2195509
$132.12/EA
Key Features
Part #:GUAX26-TB
SKU #: 2195509
Brand: Thomas & Betts
Capacity: 13.3, 13.3 cu-in
Dimensions: 3-1/2 in OD
Finish: Zinc Plated
Number of Gangs: 4
Series: GUAX
$132.12/EA
- All hubs have a minimum of 5 full threads and integral bushing
- All boxes are furnished with internal grounding screw
- Provides easy access to wiring
- Provides junction in conduit for wire pulling and splices
- Changes direction in rigid conduit systems
- Attaches two or more pieces of conduit long run
- Guards against damage to wires in rigid conduit
- Cover supplied with O-ring gasket
- Die cast aluminum cover with natural finish
- Dust, ignitionproof and raintight
- 0.755 to 0.81 in Dia throat
- Zinc plated with aluminum acrylic paint boxes
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
Specifications
Brand: Thomas & Betts
Capacity: 13.3, 13.3 cu-in
Dimensions: 3-1/2 in OD
Finish: Zinc Plated
Number of Gangs: 4
Series: GUAX
Size: 3/4, 3/4 in
Type: Explosionproof
Country of origin: CN
Material: Ductile Iron
Manufacturer Name: ABB
UNSPSC: 39131708
UPC: 00786210981857
Thomas & Betts GUAX26-TB Explosionproof Conduit Outlet Box
T&B Conduit Outlet Box, Explosionproof, Series: GUAX, 3/4 in, 4 Gangs, 13.3 cu-in, Ductile Iron, Zinc Plated, 3-1/2 in OD
Additional Description: TB -GUAX26-TB 3/4 INCH GUAX-BODY/CVR,O.D.-3-1/2
Catalog Description: 3/4 Inch GUAX Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 13.3 Cubic Inch
Item FeaturesFor use to allow mounting of fixture outlets when used with appropriate covers, easy access to wiring, junction in conduit for wire pulling and splices, changes direction in rigid conduit systems, attaches two or more pieces of conduit long runs and guards against damage to wires in rigid conduit and mounting of fixture outlets when used with appropriate covers and wet locations
Item Features
Item FeaturesClass I, Division 1, 2 Group C, D|Class II, Division 1, Group E, F, G|Class III, Division 1, 2|CSA Certified|NEMA 3/4/7/CD/9/EFG|UL File No. E202368
