Part Number # H125CP
SKU # 2444131
Image Disclaimers Message
Brand: Thomas & Betts
H125CP
Thomas & Betts H125CP
Part Number # H125CP
SKU # 2444131
$256.74 / 5Each
Typical price:$344.04 / Each
Thomas & Betts H125CP Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | H125CP |
| SKU #: | 2444131 |
| Dimensions: | 2-3/8 in W x 1-7/8 in H |
| Finish: | Polished Chrome |
| Size: | 1-1/4 in |
| Suitable For Use With: | Rigid/IMC Conduits |
| Country of origin: | CA |
| Material: | Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121311 |
| UPC: | 00786210001906 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$256.74 / 5Each
Typical price:$344.04 / Each
Quantity:

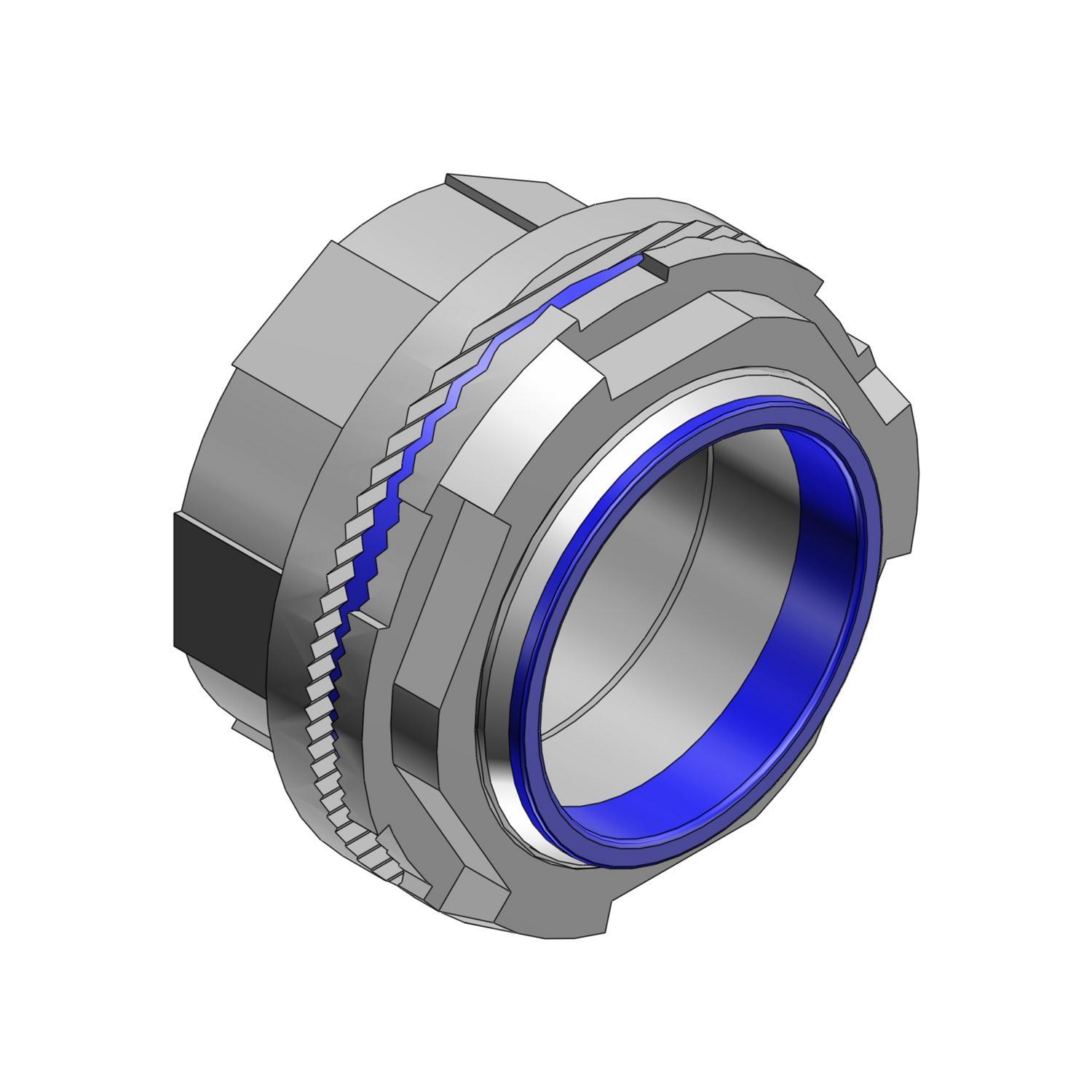

- T&B Hub Connector, 1-1/4 in, For Use With: Rigid/IMC Conduits, Zinc, Polished Chrome, 2-3/8 in W x 1-7/8 in H
H125CP Application
For use to connect threaded metal conduit to a threadless opening in a box or enclosureH125CP Item Features
- Sealing ring and groove with innovative profile better than standard O-ring
- Sealing ring is captive before installation and resists buckling or slipping during installation
- The seal groove is designed for optimum compression of the sealing ring
- The sealing ring is designed to provide a complete 360 deg seal, even when the conduit is not perpendicular with the enclosure
- Locknut design with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
- Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to the enclosure
- Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver
- Precision machined tapered threads designed to create watertight union
- Insulated throat molded from 105 deg C rated thermoplastic with a flammability rating of 94V-O
- Nitrile (Buna N) sealing ring
- 1 -5/16 in dia throat
- 1/4 in THK maximum panel
- 105 deg C temperature
H125CP Standards
Class I, Division 2|Class II, Group E, G|Class III, Division 1, 2 and Type 4|CSA Certified|UL File No. E23018SKU #2444131Part Number #H125CPUNSPSC39121311UPC00786210001906
