Part Number # H200-TB
SKU # 39388
Image Disclaimers Message
Brand: Thomas & Betts
H200-TB

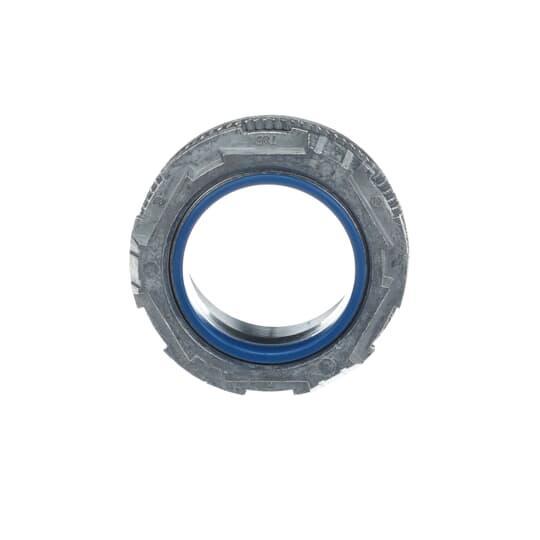

Thomas & Betts H200-TB Hub Connector
Part Number # H200-TB
SKU # 39388
$137.23 / 5Each
Thomas & Betts H200-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | H200-TB |
| SKU #: | 39388 |
| Dimensions: | 1-15/16 in H x 3-1/4 in W, 3-1/4 in W x 1-15/16 in H |
| Size: | 2, 2 in |
| Suitable For Use With: | Rigid/IMC Conduit, Rigid/IMC Conduits |
| Country of origin: | CA |
| Material: | Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121311 |
| UPC: | 00786210504056 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$137.23 / 5Each
Quantity:
Thomas & Betts H200-TB Hub Connector
Brand: Thomas & Betts
Part Number: H200-TB
T&B Hub Connector, 2 in, For Use With: Rigid/IMC Conduits, Zinc, 3-1/4 in W x 1-15/16 in H
Additional Description: TB -H200-TB 2 INCH ZINC CONDUIT HUB
Catalog Description: 2 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
H200-TB Application
For use to connect threaded metal conduit to a threadless opening in a box or enclosureH200-TB Item Features
- Sealing ring and groove with innovative profile better than standard O-ring
- Sealing ring is captive before installation and resists buckling or slipping during installation
- The seal groove is designed for optimum compression of the sealing ring
- The sealing ring is designed to provide a complete 360 deg seal, even when the conduit is not perpendicular with the enclosure
- Locknut design with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
- Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to the enclosure
- Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver
- Precision machined tapered threads designed to create watertight union
- Insulated throat molded from 105 deg C rated thermoplastic with a flammability rating of 94V-O
- Nitrile (Buna N) sealing ring
- 1-31/32 in dia throat
- 1/4 in THK maximum panel
- 105 deg C temperature
H200-TB Standards
Class I, Division 2|Class II, Group E, G|Class III, Division 1, 2 and Type 4|CSA Certified|UL File No. E23018SKU #39388Part Number #H200-TBUNSPSC39121311UPC00786210504056
