Brand: Thomas & Betts

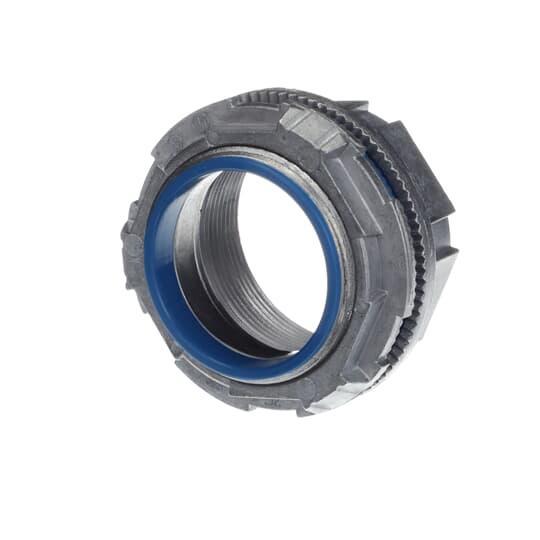

Thomas & Betts H200A Hub Connector
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts H200A Hub Connector
Brand: Thomas & Betts
Thomas & Betts H200A Hub Connector
Part #:H200A
SKU #: 2383097
$24.93/EA
Key Features
Part #:H200A
SKU #: 2383097
Brand: Thomas & Betts
Dimensions: 3-1/4 in W x 1-15/16 in H
Size: 2, 2 in
Suitable For Use With: Rigid/IMC Conduits
Country of origin: CA
Material: Aluminum
$24.93/EA
- Sealing ring and groove with innovative profile better than standard O-ring
- Sealing ring is captive before installation and resists buckling or slipping during installation
- The seal groove is designed for optimum compression of the sealing ring
- The sealing ring is designed to provide a complete 360 deg seal, even when the conduit is not perpendicular with the enclosure
- Locknut design with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
- Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to the enclosure
- Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver
- Precision machined tapered threads designed to create watertight union
- Insulated throat molded from 105 deg C rated thermoplastic with a flammability rating of 94V-O
- Nitrile (Buna N) sealing ring
- 1-31/32 in dia throat
- 1/4 in THK maximum panel
- 105 deg C temperature
Specifications
Brand: Thomas & Betts
Dimensions: 3-1/4 in W x 1-15/16 in H
Size: 2, 2 in
Suitable For Use With: Rigid/IMC Conduits
Country of origin: CA
Material: Aluminum
Manufacturer Name: ABB
UNSPSC: 39121311
UPC: 00786210903484
Thomas & Betts H200A Hub Connector
T&B Hub Connector, 2 in, For Use With: Rigid/IMC Conduits, Aluminum, 3-1/4 in W x 1-15/16 in H
Additional Description: TB -H200A 2IN HUB CONN W/INSUL THROAT AL
Catalog Description: 2 Inch Aluminum, Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
Item FeaturesFor use to connect threaded metal conduit to a threadless opening in a box or enclosure
Item Features
Item FeaturesClass I, Division 2|Class II, Group E, G|Class III, Division 1, 2 and Type 4|CSA Certified|UL File No. E23018
