Part Number # H300-TB
SKU # 229735
Image Disclaimers Message
Brand: Thomas & Betts
H300-TB

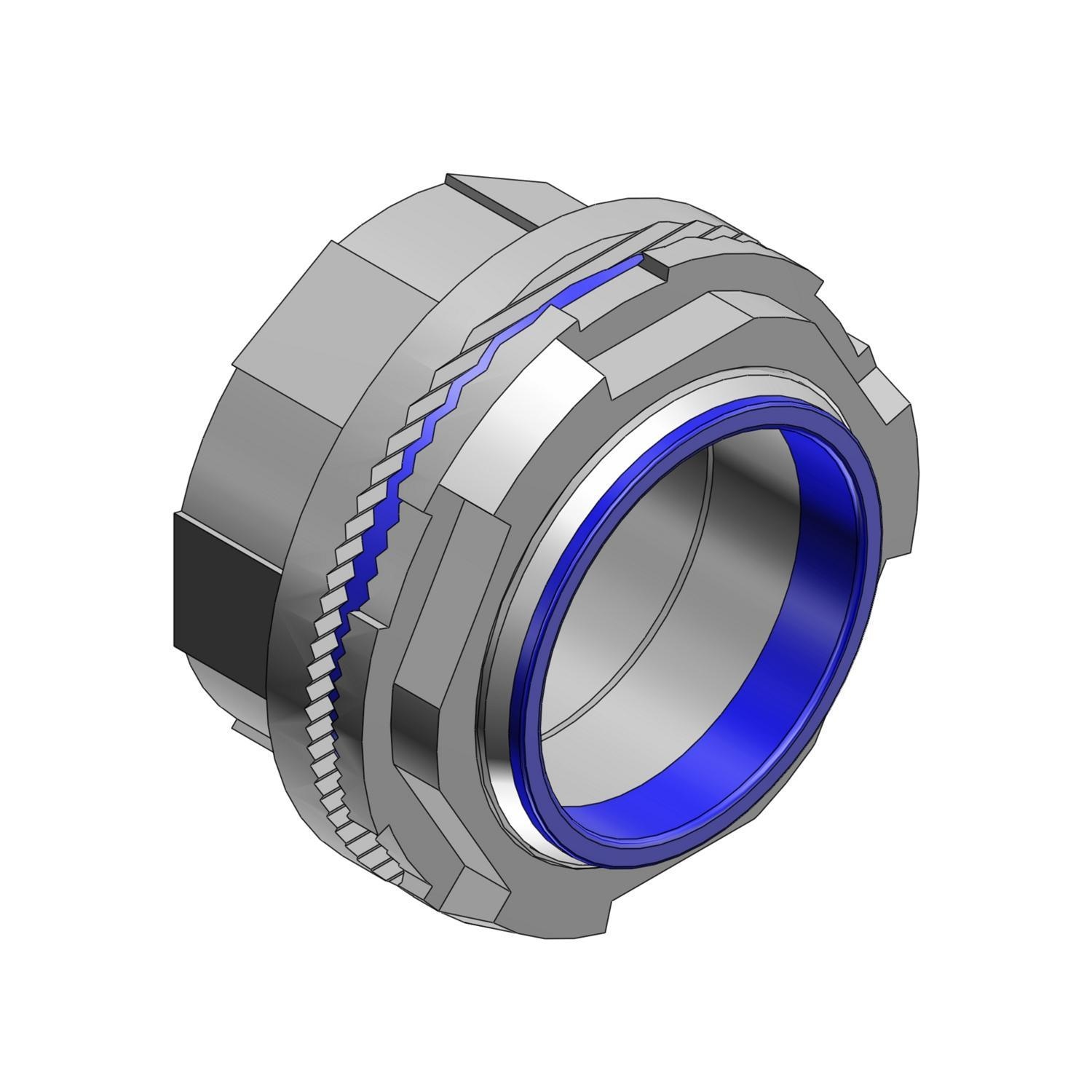

Thomas & Betts H300-TB Hub Connector
Part Number # H300-TB
SKU # 229735
$77.46 / Each
Thomas & Betts H300-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | H300-TB |
| SKU #: | 229735 |
| Dimensions: | 2-21/32 in H x 4-3/8 in W, 4-3/8 in W x 2-21/32 in H |
| Size: | 3, 3 in |
| Suitable For Use With: | Rigid/IMC Conduit, Rigid/IMC Conduits |
| Country of origin: | CA |
| Material: | Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121311 |
| UPC: | 00786210898650 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$77.46 / Each
Quantity:
Thomas & Betts H300-TB Hub Connector
Brand: Thomas & Betts
Part Number: H300-TB
T&B Hub Connector, 3 in, For Use With: Rigid/IMC Conduits, Zinc, 4-3/8 in W x 2-21/32 in H
Additional Description: TB -H300-TB 3 INCH CONDUIT FITTING
Catalog Description: 3 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
H300-TB Application
For use to connect threaded metal conduit to a threadless opening in a box or enclosureH300-TB Item Features
- Sealing ring and groove with innovative profile better than standard O-ring
- Sealing ring is captive before installation and resists buckling or slipping during installation
- The seal groove is designed for optimum compression of the sealing ring
- The sealing ring is designed to provide a complete 360 deg seal, even when the conduit is not perpendicular with the enclosure
- Locknut design with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
- Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to the enclosure
- Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver
- Precision machined tapered threads designed to create watertight union
- Insulated throat molded from 105 deg C rated thermoplastic with a flammability rating of 94V-O
- Nitrile (Buna N) sealing ring
- 2-31/32 in dia throat
- 1/4 in THK maximum panel
- 105 deg C temperature
H300-TB Standards
Class I, Division 2|Class II, Group E, G|Class III, Division 1, 2 and Type 4|CSA Certified|UL File No. E23018SKU #229735Part Number #H300-TBUNSPSC39121311UPC00786210898650
