Part Number # HS500-1000-25
SKU # 2237377
Image Disclaimers Message
Brand: Thomas & Betts
HS500-1000-25

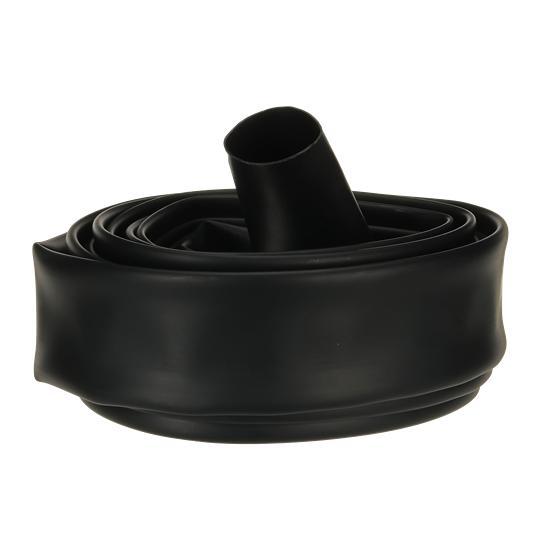

Thomas & Betts HS500-1000-25 Shrink-Kon Heat Shrink Tubing
Part Number # HS500-1000-25
SKU # 2237377
$743.66 / Roll
Thomas & Betts HS500-1000-25 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | HS500-1000-25 |
| SKU #: | 2237377 |
| Series: | HS Series |
| Shrink Ratio: | 3:01, 3:1 |
| Shrink Temperature: | 120, 120 deg C |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Wall Thickness Recovered: | 0.16, 0.16 in |
| Wire Size: | 250 to 500, 250 to 500 kcmil |
| Color: | Black |
| Country of origin: | CA |
| Length: | 25, 25 ft |
| Material: | Polyolefin |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121723 |
| UPC: | 00786210776156 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$743.66 / Roll
Quantity:
- Shrink-Kon Heat Shrink Tubing, Series: HS Series, 600 V AC, 2 in Inner Dia Expanded, 0.63 in Inner Dia Recovered, Heavy Duty Wall, 0.16 in Wall Thickness Recovered, 250 to 500 kcmil Wire, 3:1 Shrink, 25 ft Length, -55 to 110 deg C, 120 deg C Shrink, Polyolefin, Black
HS500-1000-25 Item Features
- Made of thermally stabilized cross linked polyolefin, enabling a recovered wall thickness greater than that of the cable jacket replaced
- Withstands severe mechanical requirements of URD, submersible and direct burial installations
- Tubing, featuring an internally applied sealant, offers protection against moisture and may be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials
- High impact, abrasion, corrosion and chemical-resistant
- Thermoplastic adhesive liner provides complete environmental protection and insulation
HS500-1000-25 Standards
UL Listed|CSA Certified|ANSI Specified|ICEA CompliantSKU #2237377Part Number #HS500-1000-25UNSPSC39121723UPC00786210776156
