Part Number # HTZ2
SKU # 1140863
Image Disclaimers Message
Brand: Thomas & Betts
HTZ2

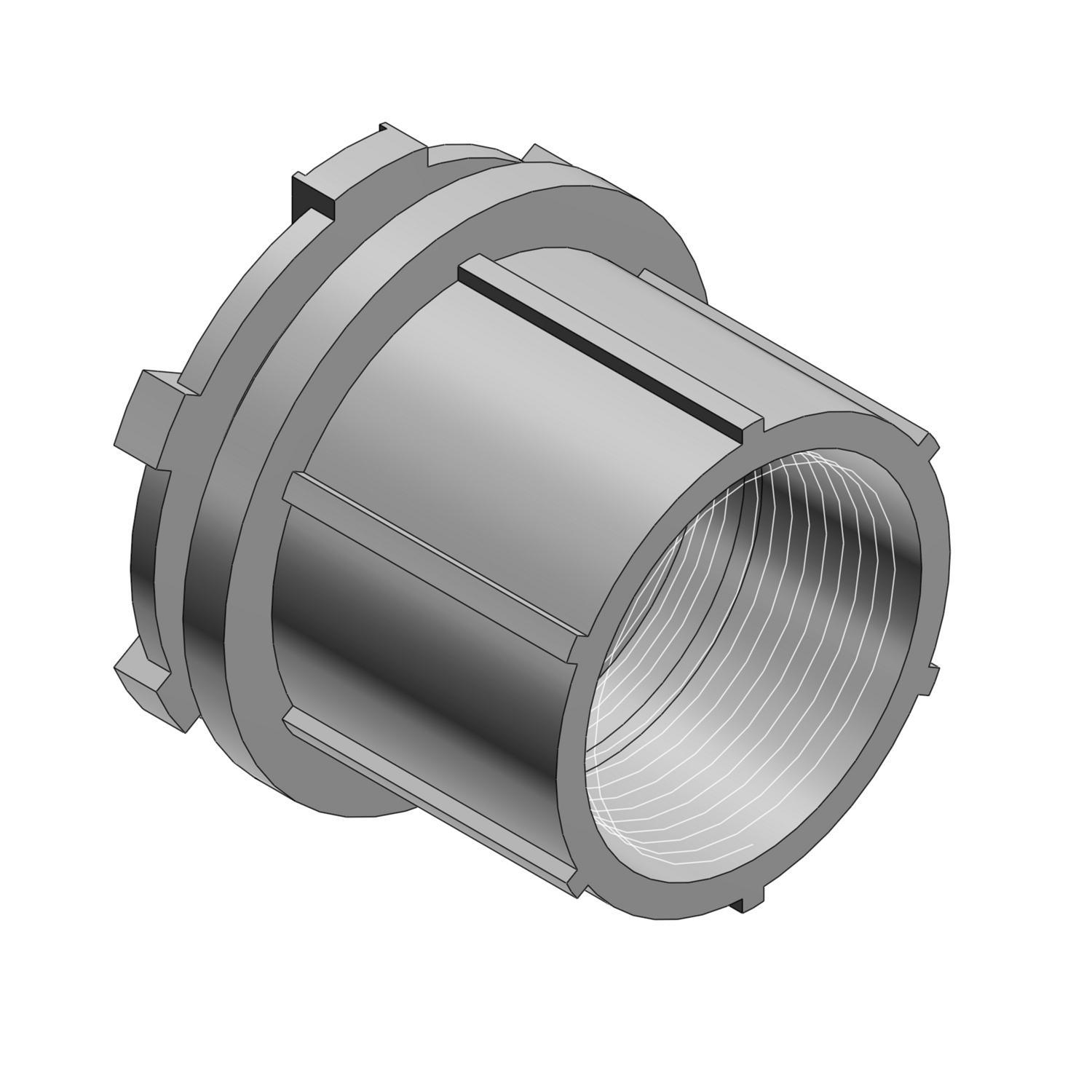

Thomas & Betts HTZ2 T&B Chase Conduit Hub
Part Number # HTZ2
SKU # 1140863
$271.00 / 25Each
Thomas & Betts HTZ2 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | HTZ2 |
| SKU #: | 1140863 |
| Dimensions: | 1-21/32 in Dia |
| Finish: | Aluminum Lacquered |
| Series: | HTZ |
| Size: | 3/4, 3/4 in |
| Suitable For Use With: | Threaded IMC/Rigid Conduits, Threaded Rigid/IMC Conduits |
| Country of origin: | IN |
| Material: | Die Cast Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131707 |
| UPC: | 00042269495500 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$271.00 / 25Each
Quantity:
Thomas & Betts HTZ2 T&B Chase Conduit Hub
Brand: Thomas & Betts
Part Number: HTZ2
T&B CHASE Conduit Hub, Series: HTZ, 3/4 in, For Use With: Threaded Rigid/IMC Conduits, Die Cast Zinc, Aluminum Lacquered, 1-21/32 in Dia
Additional Description: TB -HTZ2 3/4inch ZINC HUB
Catalog Description: Zinc Hub with Insulated Throat Hub Size 3/4 Inch
HTZ2 Application
For raintight connections between junction boxes or between a junction box and conduit system while maintaining ground continuityHTZ2 Item Features
- CHASE design provides maximum space for wiring in the box, locking nipple sits flush in the enclosure
- Locking nipple should be knurled for positive rounding and be special flush design for extra wiring room
- Plastic insulated throat, precision cast and machined surfaces permit safer wire pulling
- Captive O-ring fits snugly in groove preventing loss and fumbling with parts
- Knurled inner face of locking nipple provides 360 deg of locking and bites through box wall to ensure grounding
- Locking nipple has tightening lugs on two planes for easier assembly in hard to reach field conditions
- Grounding hubs have a ground screw located within the enclosure providing a Tamper proof ground for device
- Locking nipple design permits replacement of the box without disassembling the installation
- Buna-N O-ring
- Plastic insulating sleeves
- Suitable for use where the system is normally hosed down (NEMA 4) for cleaning
- Suitable for use in wet locations
- 1/2-14 NPT thread
- 1-3/32 in mounting hole
- 1/4 in W panel
HTZ2 Standards
CSA Certified|UL File No. E28720SKU #1140863Part Number #HTZ2UNSPSC39131707UPC00042269495500
