Part Number # HUB11/2-G
SKU # 2247605
Image Disclaimers Message
HUB11/2-G

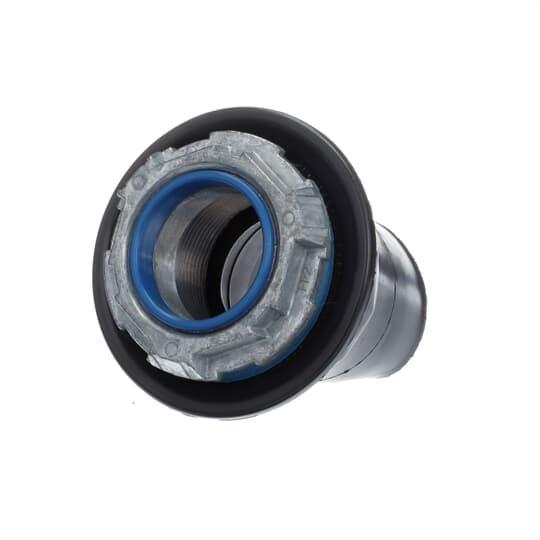

Thomas & Betts HUB11/2-G Ocal Ocal-Blue Knockout Hub Connector
Part Number # HUB11/2-G
SKU # 2247605
Thomas & Betts HUB11/2-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | HUB11/2-G |
| SKU #: | 2247605 |
| Dimensions: | 2.75 in OD x 1.88 in H |
| Finish: | PVC Coated |
| Size: | 1-1/2, 1-1/2 in |
| Suitable For Use With: | Conduit Body and Fitting |
| Color: | Dark gray |
| Country of origin: | US |
| Material: | Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121311 |
| UPC: | 00704508388249 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts HUB11/2-G Ocal Ocal-Blue Knockout Hub Connector
Brand: Thomas & Betts
Part Number: HUB11/2-G
Ocal Ocal-Blue Knockout Hub Connector, 1-1/2 in Size, For Use With: Conduit Body and Fitting, Zinc, Dark Gray, PVC Coated, 2.75 in OD x 1.88 in H Dimensions
Additional Description: TB -HUB11/2-G PVC CTD ZINC HUB CONN 1-1/2IN DGRAY
Catalog Description: PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1-1/2 Inch/41 Metric, Overall Diameter 2.75 Inch/69.85 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.53 Inch/38.86 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
HUB11/2-G Application
For used to positively bond conduit to box or enclosureHUB11/2-G Item Features
- Captive sealing ring wont buckle or slip during installation and provides a complete 360 deg seal even when conduit isnt perpendicular to the enclosure
- Hexagonal/splined body and locknut enables fast and easy installation
- Sharper and deeper teeth provide a more penetrating bite for improved bonding to the enclosure
- Zinc or copper-free aluminum with a nominal 0.04 in PVC coating bonded to exterior - in blue, white, gray or custom colors
- Pressure sealing sleeves protect connections
- Nitrile (Buna-N) sealing ring
- 1.53 in dia throat
- 1/4 in THK maximum panel
- 105 deg C temperature
- 1-1/2 in pipe
HUB11/2-G Standards
CSA CertifiedSKU #2247605Part Number #HUB11/2-GUNSPSC39121311UPC00704508388249
