Part Number # ICS68-1
SKU # 2366175
Image Disclaimers Message
Brand: Thomas & Betts
ICS68-1

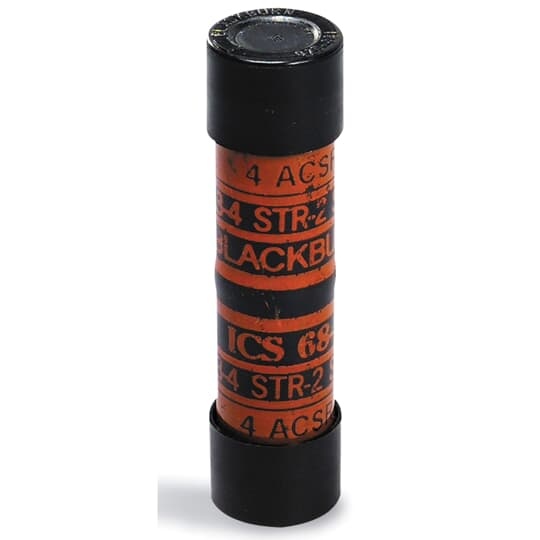

Thomas & Betts ICS68-1 Blackburn Service Entrance Splice
Part Number # ICS68-1
SKU # 2366175
$1270.00 / 500Each
Typical price:$1700.00 / Each
Thomas & Betts ICS68-1 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ICS68-1 |
| SKU #: | 2366175 |
| Conductor Size: | 4 to 2, 4 to 2 AWG |
| Conductor Type: | ASCR/Solid/Stranded |
| Connector Type: | Crimp/Compression |
| Series: | ICS |
| Specifications: | 2-Conductors, 0.213 to 0.258 in Dia End A to End B |
| Type: | Insulated |
| Country of origin: | MX |
| Length: | 2-25/32, 2-25/32 in |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121449 |
| UPC: | 00783786102402 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1270.00 / 500Each
Typical price:$1700.00 / Each
Quantity:
- Blackburn Service Entrance Splice, Insulated, Series: ICS, ASCR/Solid/Stranded Conductor, 4 to 2 AWG Conductor, Die Code: 5/8, 2-25/32 in Length, Crimp/Compression Connector, Specifications: 2-Conductors, 0.213 to 0.258 in Dia End A to End B, Aluminum, Orange
ICS68-1 Application
For standard conductor splice and combination of aluminum to aluminum and aluminum to copper conductorsICS68-1 Item Features
- Constructed from aluminum for high conductivity
- Solid center barriers and large chamfers for easy cable insertion
- Tough stabilized nylon sleeves resist installing tool pressure and provide reliable 600 VAC insulation
- Prefilled with oxide-inhibitor to prevent oxidation and keep out moisture
- All splices are Color coded and marked with strip lengths, installation die codes and compression locations providing easy identification for easy installation
- Splices have colored end caps to make identification easy
- All seasons environmental conditions
- 4 AWG ACSR, 4 to 3 AWG stranded, 2 AWG solid end A and 4 AWG ACSR, 4 to 3 AWG stranded, 2 AWG solid end B conductor
- 5/8 in die series, U-BG B58CS hydraulic dies, 5/8 (OD58 tool) peach, BG, W-BG, G, TU mechanical dies
ICS68-1 Standards
RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors / RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper ConductorsSKU #2366175Part Number #ICS68-1UNSPSC39121449UPC00783786102402
