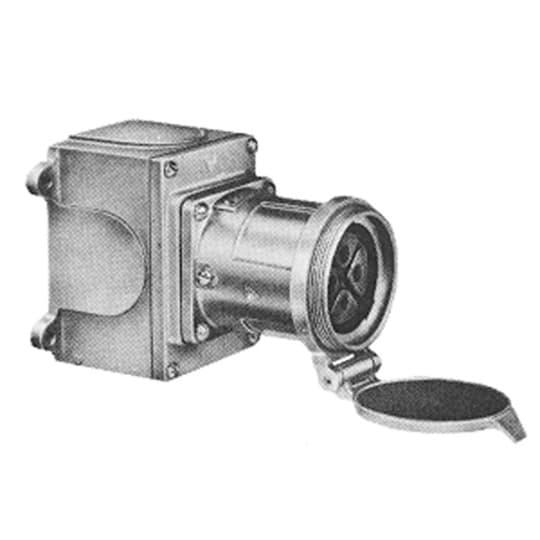

Thomas & Betts JRFR644F Russellstoll J-Line Receptacle
Image Disclaimers Message
Thomas & Betts JRFR644F Russellstoll J-Line Receptacle
Thomas & Betts JRFR644F Russellstoll J-Line Receptacle
Part #:JRFR644F
SKU #: 2261374
$4066.19/EA
Key Features
Part #:JRFR644F
SKU #: 2261374
Brand: Thomas & Betts
Amperage Rating: 60 A
Number of Poles: 4
Number of Wires: 4
Series: JRFR
Terminal Type: Pressure-Type Solderless Screw, Pressure-Type Solderless Wire
$4066.19/EA
- With straight adapter, junction box
- Circuit interrupting rated safety
- Cast aluminum, corrosion-resistant copper-free alloy housings and enclosures provide lightweight and maximum corrosion resistance, along with electrostatic epoxy powder coat finish
- Quick conversion between weathertight flap cover and watertight screw cap assemblies
- Basic receptacle housing accommodates both covers and is the basic component of all complete units
- 2-grounding arrangements
- Silver plated contacts
- 1-piece interior assemblies interchangeable from regular to reverse service in the field with a screwdriver
- Wiring space ample for maximum requirements
- Cable clamps adjustable for maximum range of cable size
- Oil-resistant neoprene strain relief bushing compresses around cable tightly, prevents entry of dust and moisture
- Polarization provides positive non-interchangeability for different electrical systems
- Flap cover can be rotated and locked in any convenient position
- Reversed contacts flexibility within any housing
Specifications
Brand: Thomas & Betts
Amperage Rating: 60 A
Number of Poles: 4
Number of Wires: 4
Series: JRFR
Terminal Type: Pressure-Type Solderless Screw, Pressure-Type Solderless Wire
Voltage Rating: 600, 600 VAC
Country of origin: US
Manufacturer Name: ABB
UNSPSC: 39121404
UPC: 00708917212195
