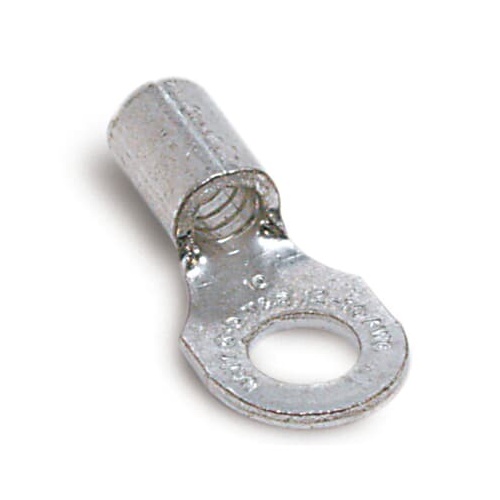

Thomas & Betts K10-38R-M Sta-Kon Ring Terminal
Part Number # K10-38R-M
SKU # 2253219
K10-38R-M
Thomas & Betts K10-38R-M Sta-Kon Ring Terminal
Part Number # K10-38R-M
SKU # 2253219
Thomas & Betts K10-38R-M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | K10-38R-M |
| SKU #: | 2253219 |
| UNSPSC: | 39121432 |
| UPC: | 00786210109008 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts K10-38R-M Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: K10-38R-M
Spec-Kon Ring Terminal, Non-Insulated, Series: K Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.063 in Length, Brazed Seam/Chamfered/Internal Serration Barrel, 0.134 in ID x 0.22 in OD x 0.236 in L Barrel, Ring Tongue, 0.591 in W x 0.039 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, Copper, Electro-Tin Plated, Metallic
Additional Description: TB -K10-38R-M (N) NON-INSUL RING TERMINAL, 12-10, 3/8 STUD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Non-Insulated Ring Terminal for Wire Range 12-10 Stud Size 3/8, Metallic
K10-38R-M Application
Wiring Harness, Panelboard, Telecommunications and Automotive Industries ApplicationsK10-38R-M Item Features
- Brazed seam ensures barrel does not separate during crimping
- Chamfered barrel entry smoothing the barrel entry edge facilitates wire insertion
- Internal barrel serrations - during crimping, the wire will cold flow into serrations, giving lower resistance connections and improving tensile strength
- Size marking - wire range is stamped on the tongue (metric and English) for easy access to the terminal size without drawings/packaging
- Electro tin plating provides excellent corrosion resistance, superior finish for better looking installation
- Provides the most secure and reliable connection
K10-38R-M Standards
CSA File No. LR4503|cULus Listed|UL File No. E9809SKU #2253219Part Number #K10-38R-MUNSPSC39121432UPC00786210109008
