Part Number # K10-38R-T
SKU # 934377
Image Disclaimers Message
Brand: Thomas & Betts
K10-38R-T

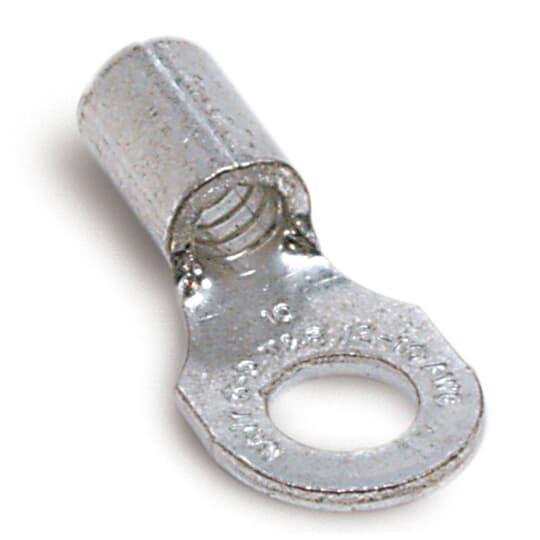

Thomas & Betts K10-38R-T Sta-Kon Ring Terminal
Part Number # K10-38R-T
SKU # 934377
$1740.40 / 2000Each
Thomas & Betts K10-38R-T Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | K10-38R-T |
| SKU #: | 934377 |
| Barrel Size: | 0.22 in Dia x 0.236 in L |
| Barrel Type: | Brazed Seam/Chamfered/Internal Serration, Chamfered |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Finish: | TiN Coated, Tin Plated |
| Series: | K Series |
| Temperature Rating (Degrees F): | 302, 302 deg F |
| Tongue Size: | 0.413 in W x 0.39 in THK |
| Tongue Type: | Ring |
| Type: | Non-Insulated |
| Color: | Metallic |
| Country of origin: | TW |
| Length: | 1.063, 1.063 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210903873 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1740.40 / 2000Each
Quantity:
Thomas & Betts K10-38R-T Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: K10-38R-T
Spec-Kon Ring Terminal, Non-Insulated, Series: K Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.063 in Length, Brazed Seam/Chamfered/Internal Serration Barrel, 0.22 in Dia x 0.236 in L Barrel, Ring Tongue, 0.413 in W x 0.39 in THK Tongue, 600 V, 302 deg F, Copper, Tin Plated, Metallic
Additional Description: TB -K10-38R-T (N) 12-10 AWG RING, 3/8 BOLT HOLE HOLE
Catalog Description: Non-Insulated Ring Terminal for Wire Range 12-10 Stud Size 3/8, Metallic, Mylar Tape
K10-38R-T Application
For mylar tape applicationsK10-38R-T Item Features
- Brazed seam ensures barrel does not separate during crimping
- Internal barrel serrations
K10-38R-T Standards
CSA File No. LR4503|cUL Listed|UL File No. E9809SKU #934377Part Number #K10-38R-TUNSPSC39121432UPC00786210903873
