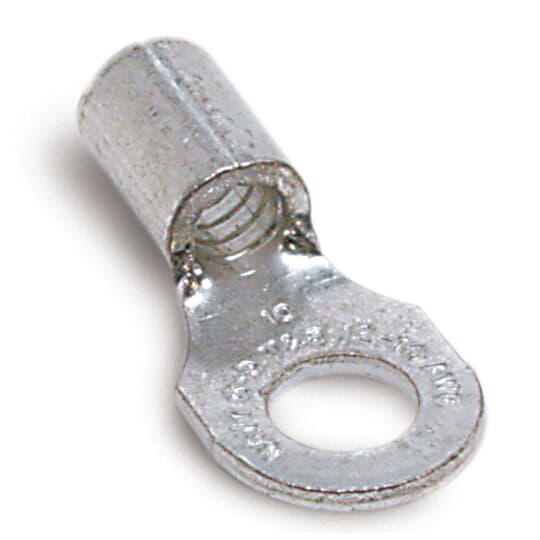

Thomas & Betts K4-14R-W Sta-Kon Ring Terminal
Image Disclaimers Message
Thomas & Betts K4-14R-W Sta-Kon Ring Terminal
Thomas & Betts K4-14R-W Sta-Kon Ring Terminal
Part #:K4-14R-W
SKU #: 934344
Key Features
Part #:K4-14R-W
SKU #: 934344
Brand: Thomas & Betts
Barrel Size: 0.303 in ID x 0.453 in OD x 0.472 in L
Barrel Type: Brazed Seam/Chamfered
Conductor Size: 4, 4 AWG
Finish: TiN Coated, Tin Plated
Series: K Series
- Features internal barrel serrations for enhanced tensile strength and brazed seam ensures barrel does not separate during crimping
- Chamfered barrel entry provides smoothing the barrel entry edge facilitates wire insertion
- 250 pieces/pack
Thomas & Betts K4-14R-W Sta-Kon Ring Terminal
Spec-Kon Ring Terminal, Non-Insulated, Series: K Series, 4 AWG Conductor, 1/4 in Stud, 1.319 in Length, Brazed Seam/Chamfered Barrel, 0.303 in ID x 0.453 in OD x 0.472 in L Barrel, Ring Tongue, 0.65 in W x 0.067 in THK Tongue, 600 V, Specifications: 0.594 in Clearance, 105 deg C, Copper, Tin Plated, Metallic
Additional Description: TB -K4-14R-W (N) NON-INSUL RING, 4 AWG, 1/4 STUD
Catalog Description: Non-Insulated Ring Terminal, Length 1.319 Inches, Width .650 Inches, Bolt Hole 1/4 Inch, Wire Range #4 AWG, Copper, Tin Plated
